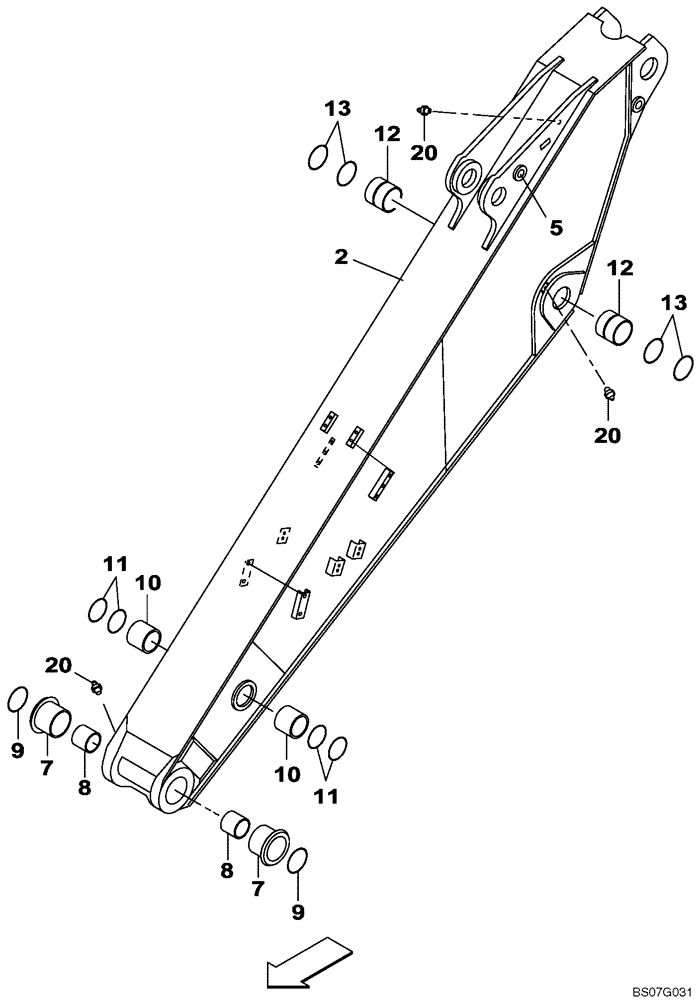

Запчасти Case CX290B (09-55) - ARM, EXCAVATOR, 2.65 METER (8 FT 8 IN) (09) - CHASSIS/ATTACHMENTS

1

KBV18340

DIPPER

Short 2.50 M, Incls. Refs. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

7

KBV17370

BUSHING

2шт.

8

KBV14210

BUSHING

2шт.

9

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

2шт.

10

KBV1359

SELF LUB RING

2шт.

11

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

4шт.

12

KBV14190

SELF LUB RING

2шт.

13

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

4шт.

20

153630A1

LUBE NIPPLE

3шт.
