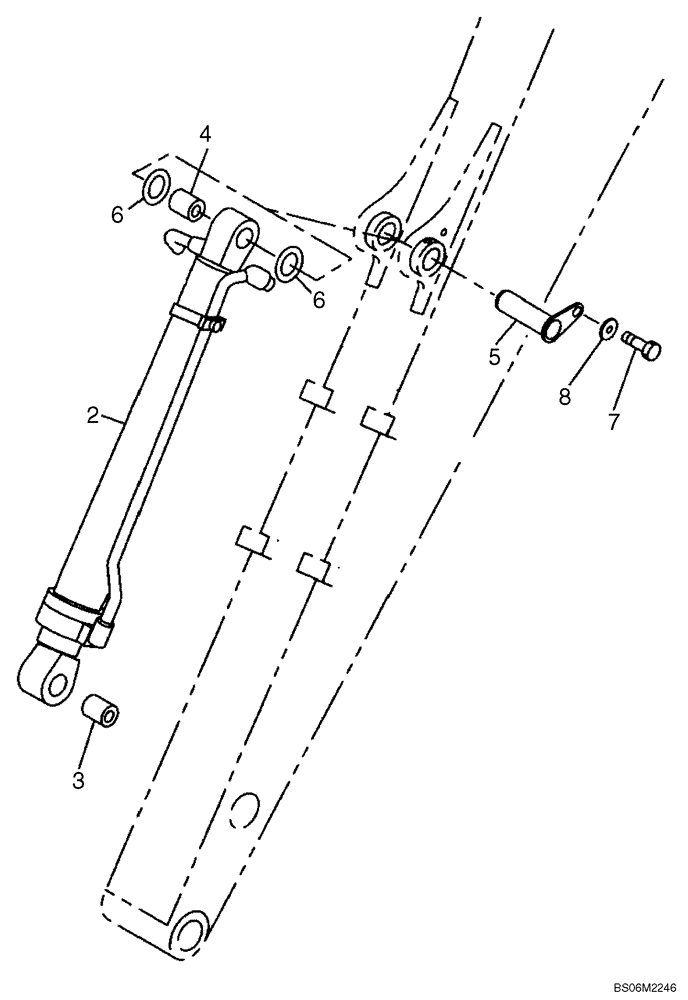

Запчасти Case CX290B (09-39) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

2

KBV13620

BUCKET CYLINDER

Incl. 3, 4; See Figure 08-86

1шт.

2

KBV13620R

REMAN-HYD CYLINDER

CX290B CRAWLER EXCAVATOR TIER 3 (NA), MOUNTING (1/07-)

1шт.

2

KBV13620C

CORE-HYD CYLINDER

Return Number

1шт.

3

KBV13750

SELF LUB RING

1шт.

4

KBV1361

SELF LUB RING

1шт.

5

KBV11530

PIN

1шт.

6

159741A1

SHIM

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

157141A1

WASHER

1шт.
