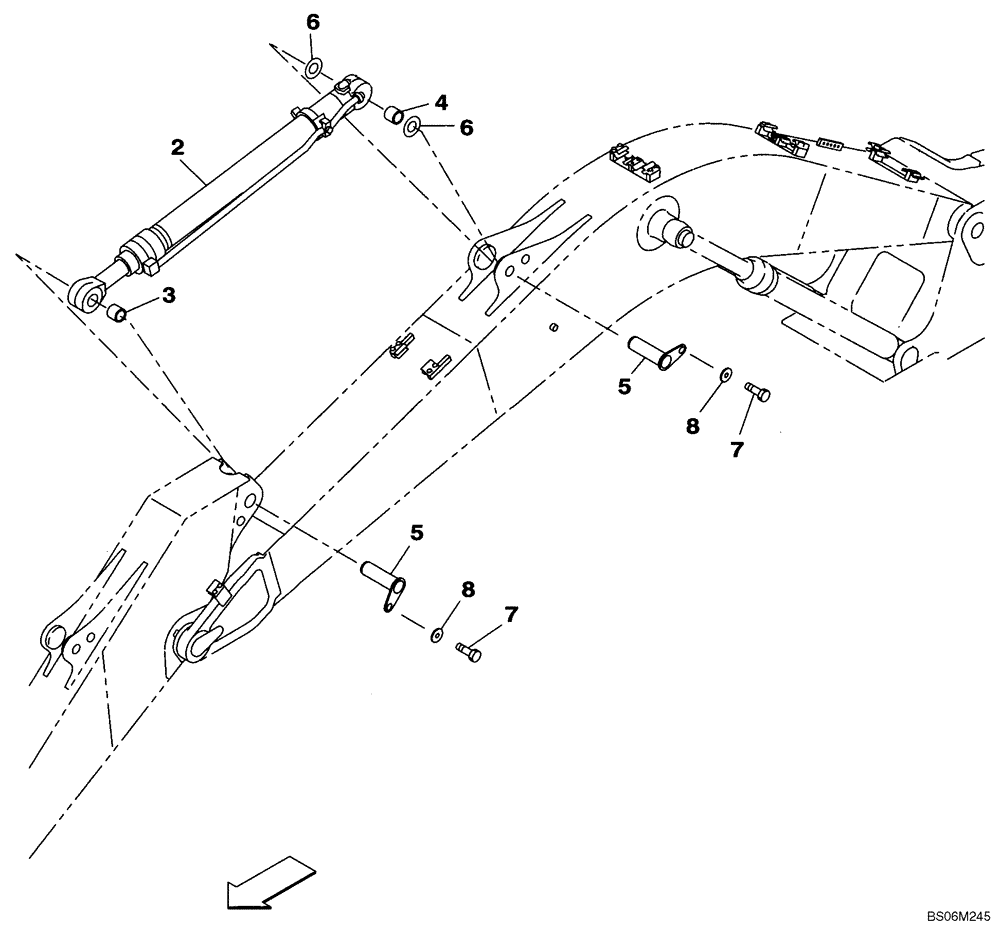

Запчасти Case CX290B (09-38) - ARM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

2

KBV13590

HYDRAULIC CYLINDER

Arm; Incl. 3, 4; See Figure 08-85

1шт.

2

KBV13590R

REMAN-HYD CYLINDER

Reman For New P/N KBV13590

1шт.

2

KBV13590C

CORE-HYD CYLINDER

Return Number

1шт.

3

KBV10480

SELF LUB RING

1шт.

4

KBV1628

SELF LUB RING

1шт.

5

KBV14540

PIN

2шт.

6

KBV1629

SHIM

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

8

157141A1

WASHER

2шт.
