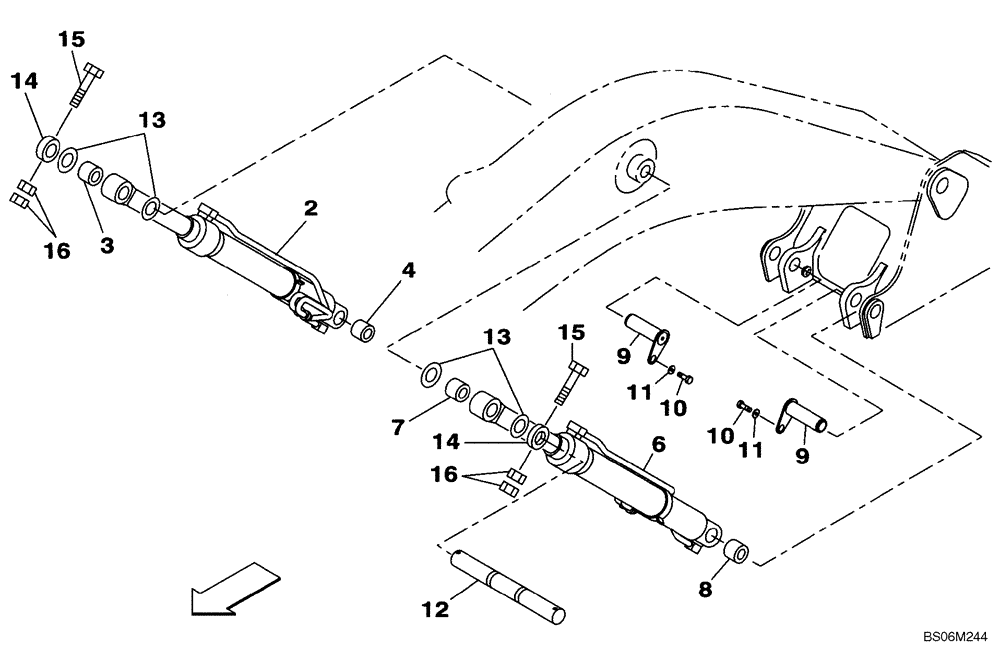

Запчасти Case CX290B (09-37) - BOOM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

2

KBV13600

HYDRAULIC CYLINDER

Boom; Right Hand; Incl. 3, 4; See Figure 08-83

1шт.

2

KBV13600R

REMAN-HYD CYLINDER

CX290B CRAWLER EXCAVATOR TIER 3 (NA), MOUNTING, Boom, Right Hand (1/07-)

1шт.

2

KBV13600C

CORE-HYD CYLINDER

Return Number

1шт.

3

KBV1360

SELF LUB RING

1шт.

4

KBV1628

SELF LUB RING

1шт.

6

KBV13610

HYDRAULIC CYLINDER

Boom; Left Hand; Incl. 7, 8; See Figure 08-84

1шт.

6

KBV13610R

REMAN-HYD CYLINDER

CX290B CRAWLER EXCAVATOR TIER 3 (NA), MOUNTING, Boom, Left Hand (1/07-)

1шт.

6

KBV13610C

CORE-HYD CYLINDER

Return Number

1шт.

7

KBV1360

SELF LUB RING

1шт.

8

KBV1628

SELF LUB RING

1шт.

9

KBV13720

PIN

2шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

11

157141A1

WASHER

2шт.

12

KBV13580

PIN

1шт.

13

158453A1

SHIM

4шт.

14

163087A1

HOSE CLIP

2шт.

15

514-1219

BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9

2шт.

16

829-11420

NUT,M20 x 1.5, Cl 10

4шт.
