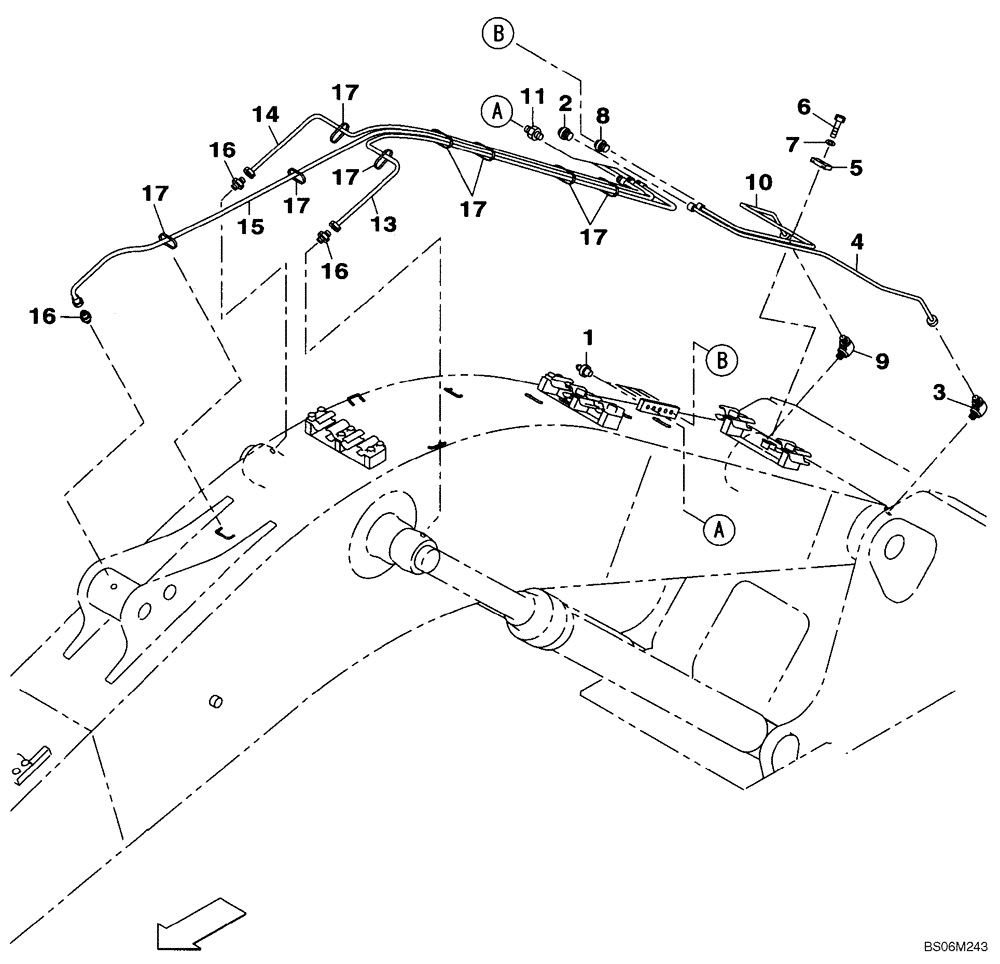

Запчасти Case CX290B (09-36) - LUBRICATION CIRCUIT - BOOM (09) - CHASSIS/ATTACHMENTS

1

153630A1

LUBE NIPPLE

5шт.

2

152599A1

MULTIPOLE CONNECTOR

1шт.

3

152627A1

ELBOW

1шт.

4

KBV14490Y2

HYD TUBE

Replaces KBV14490

1шт.

5

153774A1

CLAMP

1шт.

6

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

7

153081A1

WASHER

1шт.

8

152599A1

MULTIPOLE CONNECTOR

1шт.

9

152627A1

ELBOW

1шт.

10

KBV14500Y2

HYD TUBE

Replaces KBV14500

1шт.

11

KRJ4050

ADAPTER

3шт.

13

KHJ2078

HOSE

1шт.

14

KHJ2083

HOSE

Until N7EAN1275 And N8SANXXXX

1шт.

14

KHJ13550

HYDRAULIC HOSE

Since N7EAN1276 And N8SANXXXX

1шт.

15

KHJ2162

HOSE

Until N7EAN1275 And N8SANXXXX

1шт.

15

KHJ2172

HOSE

Since N7EAN1276 And N8SANXXXX

1шт.

16

153603A1

ADAPTER

3шт.

17

150067A1

MOUNTING CLIP

9шт.
