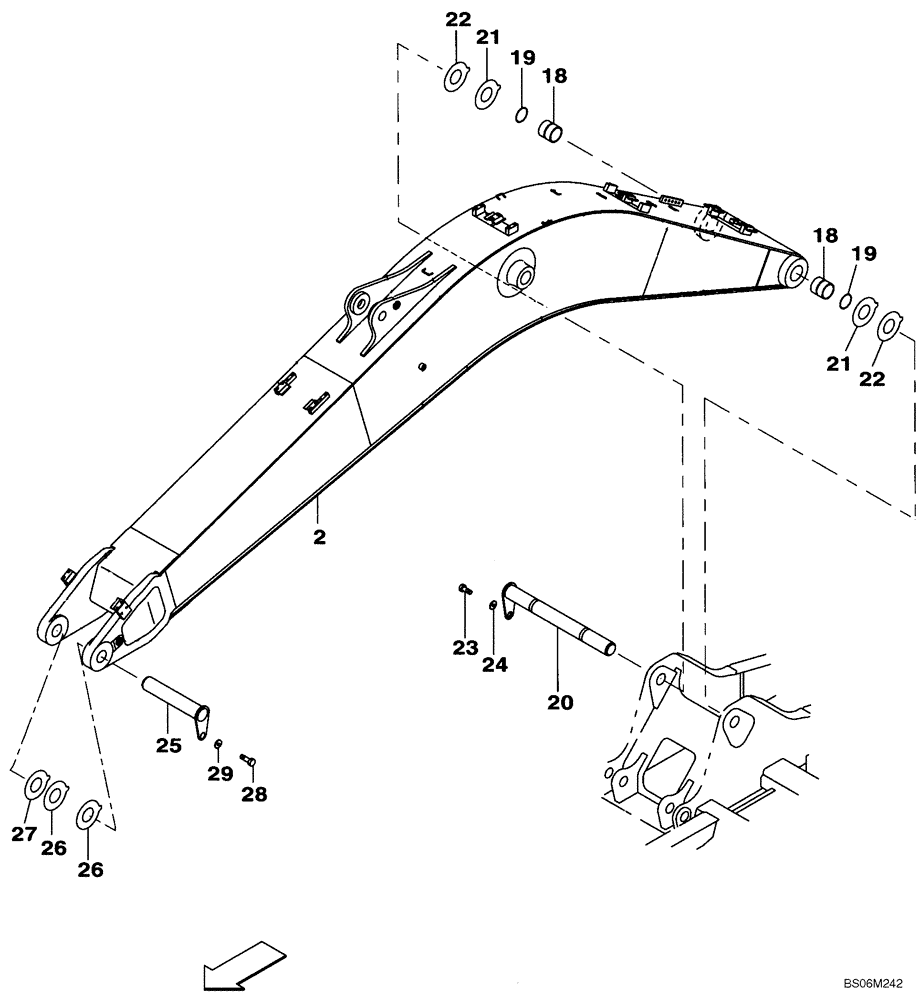

Запчасти Case CX290B (09-35) - BOOM (09) - CHASSIS/ATTACHMENTS

KBV14280

BOOM

Incl. 2, 18, 19, Before 290R5N7EAN1125 And 290RN7SAN1108

1шт.

KBV18660

BOOM

Incl. 2, 18, 19, N7EAN1125 To 1275 And N7SAN1108 To XXXX

1шт.

KBV22020

BOOM

Incl. 2, 18, 19, Since N7EAN1276 And N8SANXXXX

1шт.

2

NSS

NOT SOLD SEPARAT

Boom

1шт.

18

KBV1360

SELF LUB RING

2шт.

19

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

2шт.

20

KBV14390

PIN

1шт.

21

KBV11190

SHIM,1mm Thk

2шт.

22

KBV11200

SHIM,2mm Thk

2шт.

23

102R020Y035R

BOLT

1шт.

24

KTV1185

SPACER

1шт.

25

KBV14380

PIN

1шт.

26

KBV11190

SHIM,1mm Thk

2шт.

27

KBV11200

SHIM,2mm Thk

1шт.

28

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

29

157141A1

WASHER

1шт.
