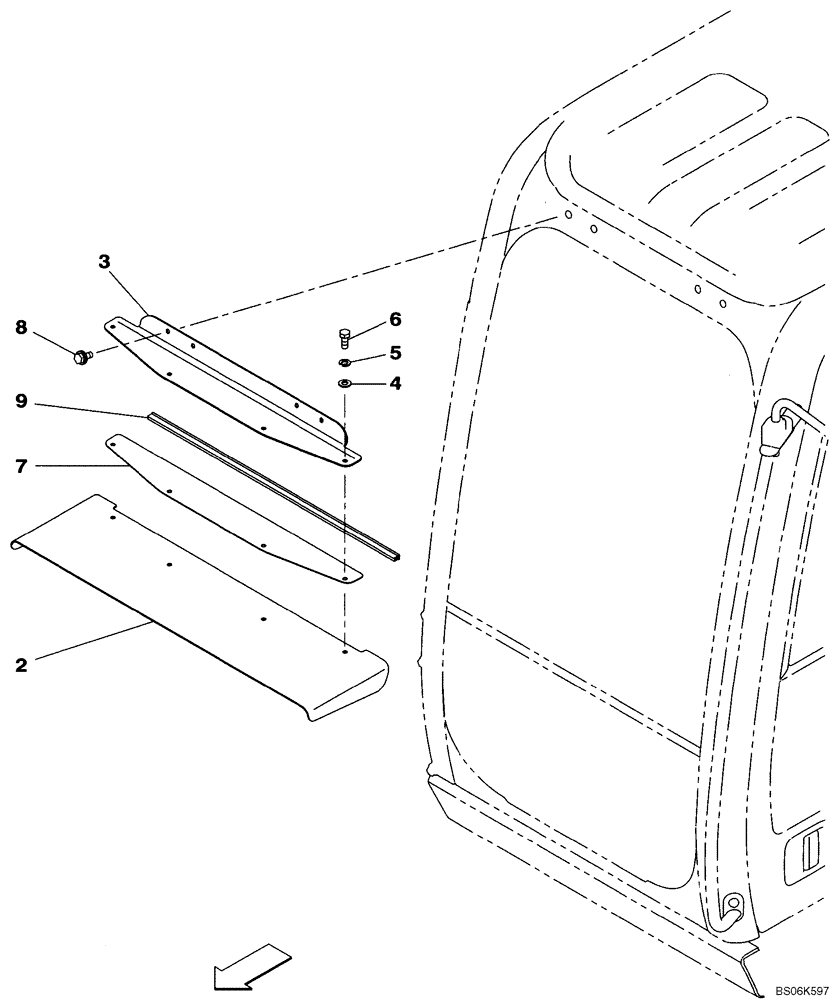

Запчасти Case CX290B (09-34[01]) - RAIN DEFLECTOR (09) - CHASSIS/ATTACHMENTS

2

KHN11900

DEFLECTOR

1шт.

3

KHN13600

SUPPORT

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

183-108VR

SPRING WASHER

4шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

7

KHN11920

SUPPORT

1шт.

8

166350A1

BOLT

4шт.

9

KHN2901

RUBBER STRIP

1шт.
