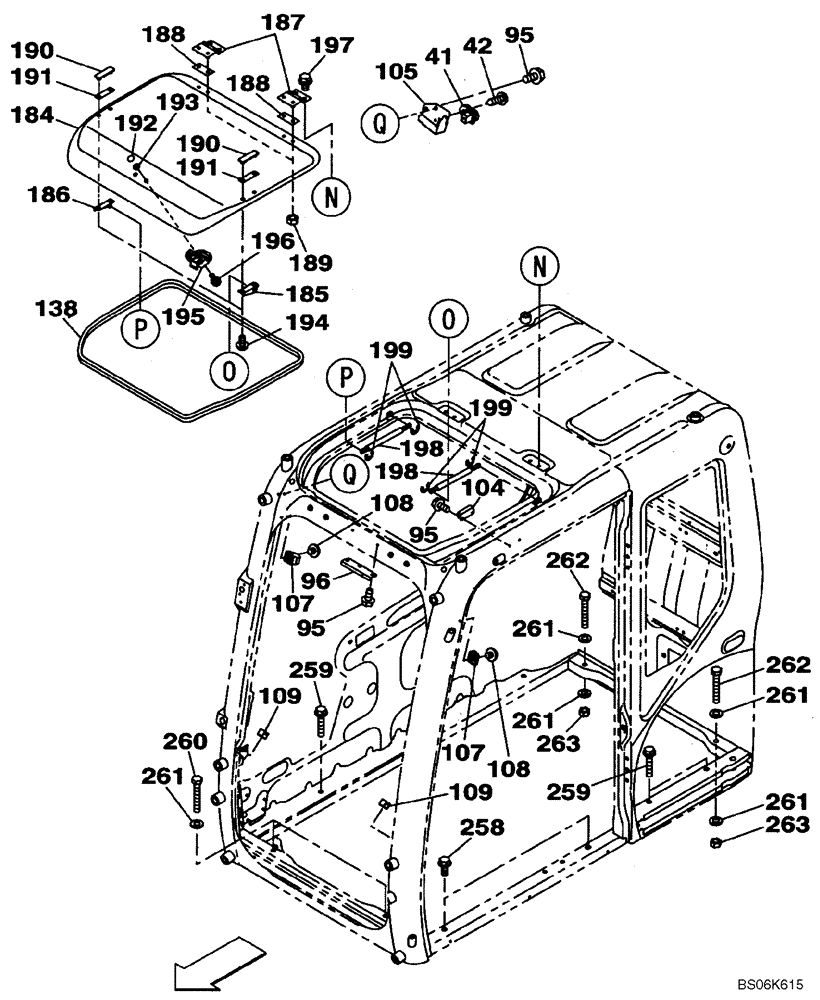

Запчасти Case CX290B (09-29) - CAB - ROOF, OPENABLE WINDOW (09) - CHASSIS/ATTACHMENTS

KHN16502

CAB

Incl. 41 - 138; Also Includes Parts On Figures 04-15, 09-26, 09-27, 09-30

1шт.

41

KHR2950

LIMIT SWITCH

Limit

1шт.

42

KHN2713

SCREW,Spcl

1шт.

95

KHN15690

BOLT

7шт.

96

KHN15870

STOP

1шт.

104

KHN15940

STOP LOCK

1шт.

105

KHN15950

BRACKET

1шт.

107

KHN15960

STOP LOCK

2шт.

108

KHN15970

SCREW

2шт.

109

KHN15980

STOP LOCK

2шт.

138

KHN15340

SEAL

1шт.

KHN13700

HATCH

Roof Window Assy; Incl. 184 - 199

1шт.

KHN15180

HATCH

Incl. 184 - 196

1шт.

184

KHN15190

CAB GLASS

1шт.

185

KHN15200

BRACKET

1шт.

186

KHN15210

BRACKET

1шт.

187

KHN15220

HINGE

2шт.

188

KHN15230

RETAINER

4шт.

189

KHN15240

SPECIAL NUT

4шт.

190

KHN15250

RETAINER

2шт.

191

KHN15260

PLATE

2шт.

192

KHN15270

RETAINER

2шт.

193

KHN15280

RETAINER

2шт.

194

KHN15290

SCREW

4шт.

195

KHN15300

HANDLE

1шт.

196

KHN15310

SCREW

2шт.

197

KHN15320

BOLT,Spcl

4шт.

198

KHN2827

GAS STRUT

2шт.

199

KHN2828

CIRCLIP

4шт.

258

166352A1

BOLT

2шт.

259

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

4шт.

260

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

2шт.

261

150811A1

WASHER

6шт.

262

KHN11930

BOLT

2шт.

263

829-1412

NUT,M12, Cl 10.9

2шт.
