Запчасти Case CX290B (09-27) - CAB - LOWER FRONT AND REAR GLASS AND HANDRAILS (09) - CHASSIS/ATTACHMENTS

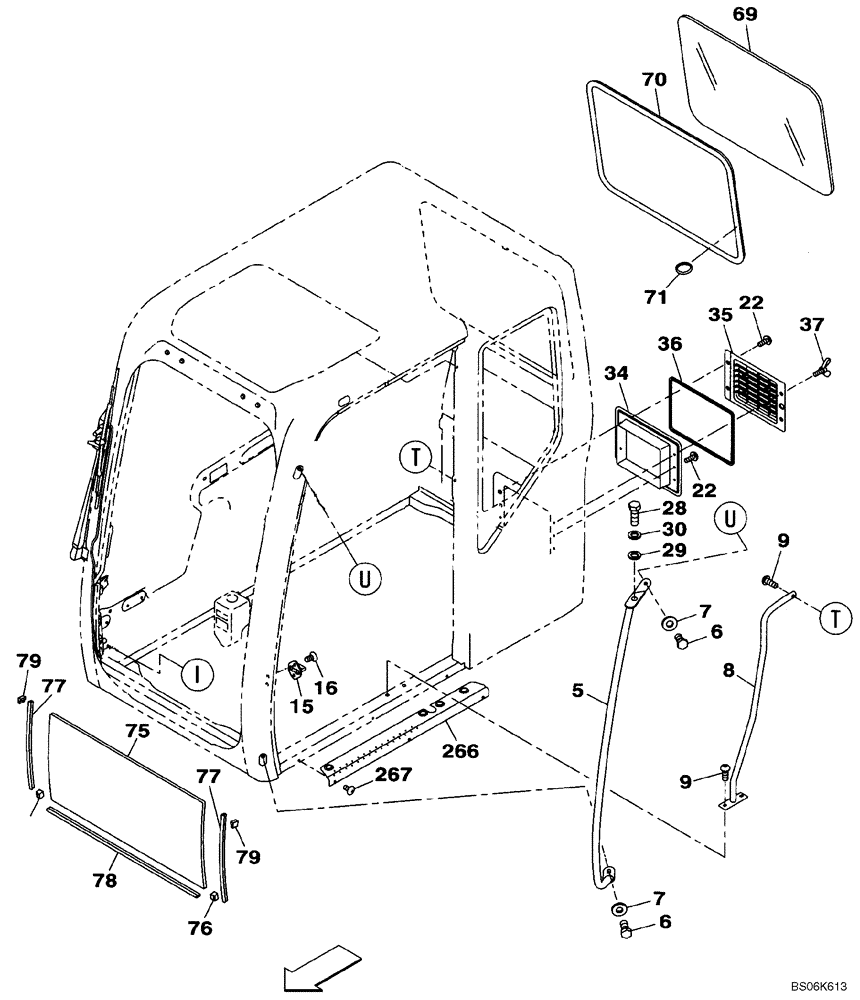

Схема запчастей Case CX290B - (09-27) - CAB - LOWER FRONT AND REAR GLASS AND HANDRAILS (09) - CHASSIS/ATTACHMENTS
37
75
9
79
28
9
69
77
15
77
34
29
71
16
266
78
7
79
70
8
22
5
36
7
6
76
6
267
22
35
30

Артикул

Название

Примечание

Количество

KHN16502

CAB

Incl. 5 - 79; Also Includes Parts On Figures 04-15, 09-26, 09-29, 09-30

1шт.

5

KHN14110

HANDRAIL

1шт.

6

KHN14120

BOLT,Spcl

2шт.

7

KHN14130

WASHER

2шт.

8

KHN14150

HANDRAIL

1шт.

9

KHN14160

BOLT,Spcl

3шт.

15

KHN14200

STOP

1шт.

16

KHN2702

SCREW,Spcl

2шт.

22

KHN2768

SCREW,Spcl

3шт.

28

KHN14270

BOLT,Spcl, Hex, M16 x 50mm

1шт.

29

KHN14280

WASHER

1шт.

30

KHN14290

WASHER

1шт.

34

KHN2769

COVER

1шт.

35

KHN14330

COVER

1шт.

36

KHN2771

SEAL

1шт.

37

KHN14340

BOLT,Spcl

2шт.

69

KHN14930

CAB GLASS

1шт.

70

KHN14950

RUBBER WEATHERSTRIP

1шт.

71

KHN14960

RING

1шт.

75

KHN15000

CAB GLASS

1шт.

76

KHN15010

STOP LOCK

2шт.

77

KHN15020

SEAL, GLASS

2шт.

78

KHN15030

SEAL, GLASS

1шт.

79

KHN15040

SEAL

2шт.

266

KHN13630

GUARD

1шт.

267

KHN13640

SCREW

3шт.

Выбрано товаров: 26
