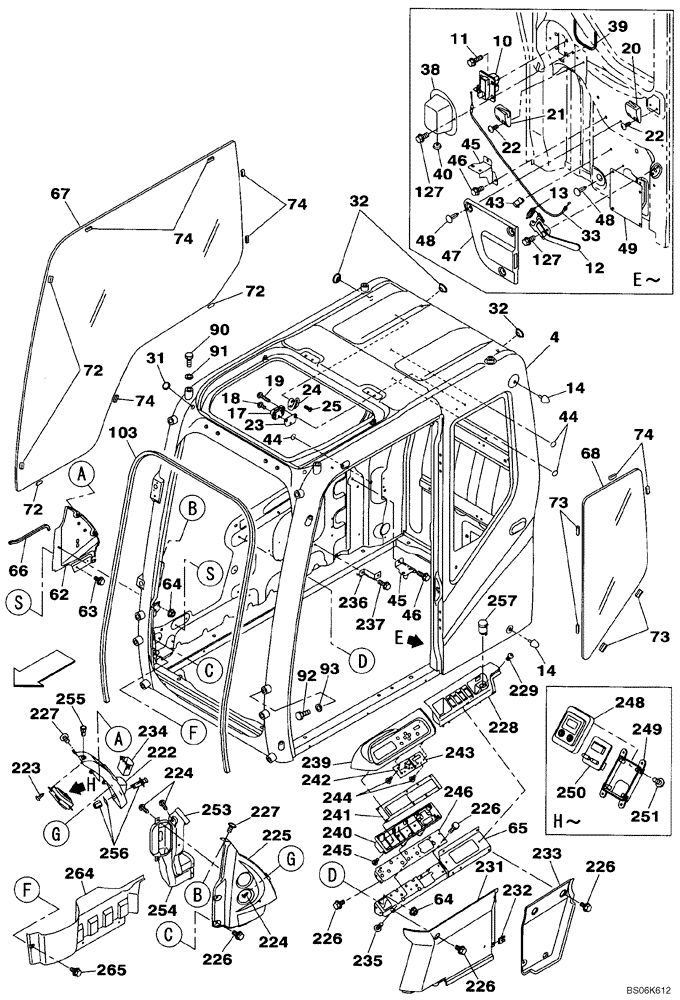

Запчасти Case CX290B (09-26) - CAB - SIDE GLASS AND ELECTRONIC CONTROL UNIT (09) - CHASSIS/ATTACHMENTS

KHN16502

CAB

Includes All Parts On Figures 04-15, 09-26 - 09-30 (Includes Door)

1шт.

KHN16502

CAB

Incl. 4 - 127; Also Includes Parts On Figures 04-15, 09-27, 09-29, 09-30

1шт.

KHR15202R

REMAN-INSTR CLUSTER

CX290B CRAWLER EXCAVATOR TIER 3 (NA), ELECTRONIC UNIT, CONTROL (1/07-)

1шт.

KHR15202C

CORE-CLUSTER, INSTR

Return Number

1шт.

4

KHN16550

CAB BODY

1шт.

10

161384A1

RH DOOR LOCK

1шт.

11

KHN2688

BOLT,Spcl

4шт.

12

KHN14170

LEVER

1шт.

13

KHN16400

SPRING

1шт.

14

KHN2704

STOP

2шт.

17

KHN14220

SUPPORT

1шт.

18

KHN2682

SCREW,Spcl

1шт.

19

KHN2681

SCREW

2шт.

20

KHN14230

SUPPORT

1шт.

21

KHN14240

SUPPORT

1шт.

22

KHN2768

SCREW,Spcl

4шт.

23

KHN2722

LEDGER PLATE

1шт.

24

KHN14250

HOOK

1шт.

25

KHN14260

SCREW

2шт.

31

KHN14300

GROMMET

1шт.

32

KHN14310

GROMMET

3шт.

33

KHN14320

BOWDEN CONTROL

1шт.

38

KHN2723

CAP ASSY.

1шт.

39

161385A1

SEAL

1шт.

40

161383A1

GROMMET

1шт.

43

161381A1

COLLAR

1шт.

44

KHN14350

RUBBER JOINT

3шт.

45

KHN14360

BRACKET

2шт.

46

CDP1373

BOLT

4шт.

47

KHN14370

COVER

1шт.

48

KHN14380

CLIP

4шт.

49

KHN20260

SEAL

SEAL, Replaces KHN14390

1шт.

62

KHN14707

COVER, Replaces KHN14700

1шт.

63

KHN14710

BOLT,Spcl

2шт.

64

161453A1

FLANGE NUT

7шт.

65

KHN14730

BRACKET

1шт.

66

KHN16270

SEAL

1шт.

67

KHN14890

CAB GLASS

1шт.

68

KHN14910

CAB GLASS

1шт.

72

KHN14970

SPACER

4шт.

73

KHN14980

SPACER

4шт.

74

KHN14990

SPACER

7шт.

90

KHN16280

BOLT,Spcl

4шт.

91

KHN16290

WASHER

4шт.

92

KHN16300

BOLT

8шт.

93

KHN16310

WASHER

8шт.

103

KHN15930

SEAL, GLASS

1шт.

127

KHN2756

BOLT,Spcl

6шт.

222

KHN12870

PADDING

1шт.

223

KHN16120

SCREW

4шт.

224

KHN16130

SCREW

8шт.

225

KHN12070

PADDING

1шт.

226

KHN14710

BOLT,Spcl

15шт.

227

KHN16140

BOLT,Spcl

3шт.

228

KHN13780

PADDING

1шт.

229

KHN2682

SCREW,Spcl

2шт.

231

KHN12100

PADDING

1шт.

232

KHN16430

SPECIAL NUT

1шт.

233

KHN12120

PADDING

1шт.

234

KHN12880

HOUSING

1шт.

235

KHN16150

SCREW

6шт.

236

KHN16160

SUPPORT

1шт.

237

KHN2756

BOLT,Spcl

1шт.

KHR15202

INSTRUMENT CLUSTER

ELECTRONIC UNIT, CONTROL Incl. 239 - 245, Replaces KHR15200, KHR15201

1шт.

239

KHR15270

BOX

1шт.

240

KHR15230

BOX

1шт.

241

KHR15242

ECU

Replaces KHR15241

1шт.

242

KHR15250

PRINTED CIRCUIT BOAR

1шт.

243

KHR15260

PRINTED CIRCUIT BOAR

1шт.

244

KHR3213

SELF-TAP SCREW

9шт.

245

161859A1

SELF-TAP SCREW,M4 x 16mm

8шт.

246

KHR15170

SUPPORT

1шт.

KHR10060

CLOCK

Incl. 248 - 251

1шт.

248

KHR13810

BOX

1шт.

249

KHR13820

BOX

1шт.

250

KHR13830

PRINTED CIRCUIT BOAR

1шт.

251

KHR13840

SELF-TAP SCREW

4шт.

KHR10540

SENSOR

Incl. 253 - 255

1шт.

253

KHR13200

AIR DUCT

1шт.

254

KHR13230

AIR DUCT

1шт.

255

KHR10540

SENSOR

1шт.

256

KHR11210

CIGARETTE LIGHTER

1шт.

257

KHR2501

SOCKET

1шт.

264

KHN13760

PADDING

1шт.

265

KHN2132

BOLT,Hex Flg Hd, M6 x 16

3шт.
