(09-23) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER

Запчасти Case CX290B (09-23) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS

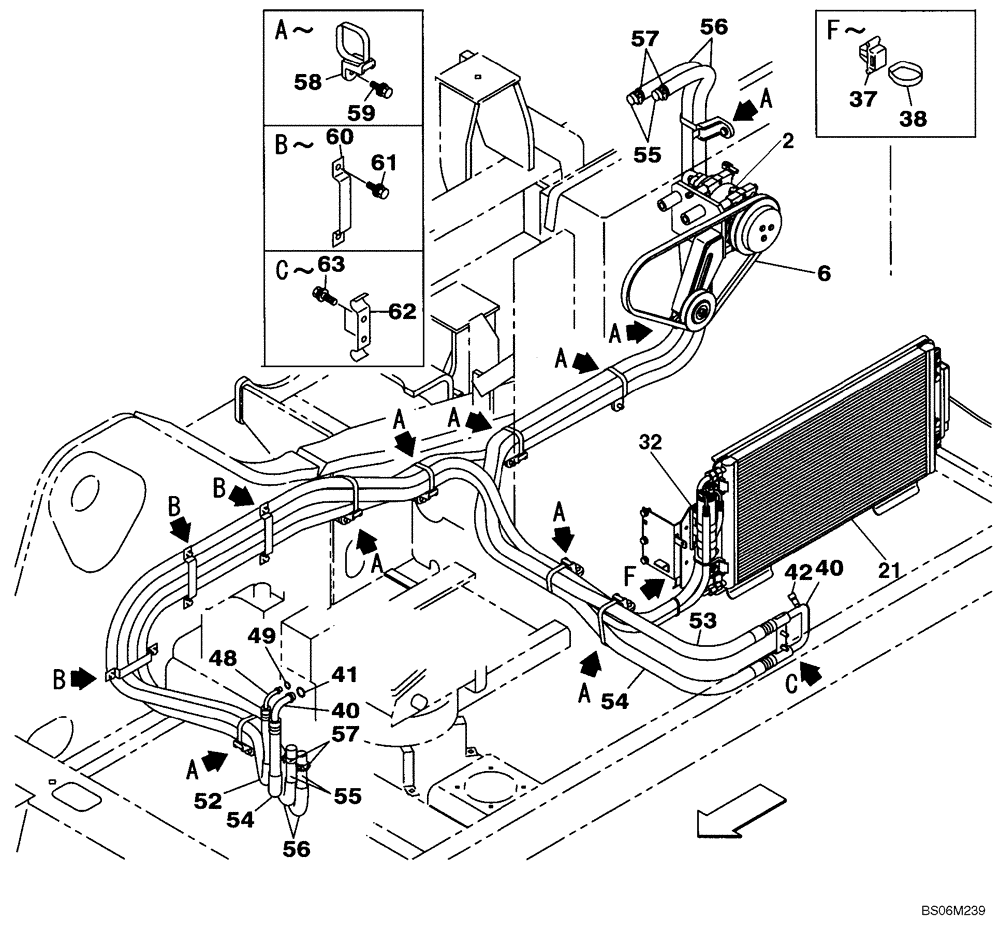

Схема запчастей Case CX290B - (09-23) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS
49
57
42
32
54
54
41
56
62
57
58
60
56
55
37
2
38
6
61
48
40
59
52
53
55
63
21
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KHR3197

COMPRESSOR

See Figure 09-24

1шт.

KHR3197R

REMAN-COMPRESSOR

CX290B Tier 3 (1/07-)

1шт.

KHR3197C

CORE-COMPRESSOR

Return Number

1шт.

6

159639A1

V-BELT

1шт.

21

KHR13070

CONDENSER

See Figure 09-25

1шт.

32

KHR13590

RECEIVER-DRYER

See Figure 09-25

1шт.

37

KHR10220

MOUNTING CLIP

1шт.

38

150496A1

MOUNTING CLIP

1шт.

40

KHR14160

HOSE

Incl. 41, 42

1шт.

41

169052A1

O-RING

2шт.

42

KHR3054

CAP

1шт.

48

KHR14190

HOSE

Incl. 49

1шт.

49

169054A1

O-RING

1шт.

52

KRH10820

PLASTIC-RUBBER TUBE

1шт.

53

166127A1

PLASTIC-RUBBER TUBE

1шт.

54

KBR10510

PLASTIC-RUBBER TUBE

1шт.

55

KHR10780

HOSE,4500.00 mm

2шт.

56

KBR0720

PLASTIC-RUBBER TUBE

2шт.

57

KRJ1062

COLLAR

4шт.

58

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

9шт.

59

KHJ1215

BOLT,Spcl

9шт.

60

KHJ11090

COLLAR

3шт.

61

KHJ1215

BOLT,Spcl

6шт.

62

KHR10730

COLLAR CLAMP

1шт.

63

KHJ1215

BOLT,Spcl

2шт.
