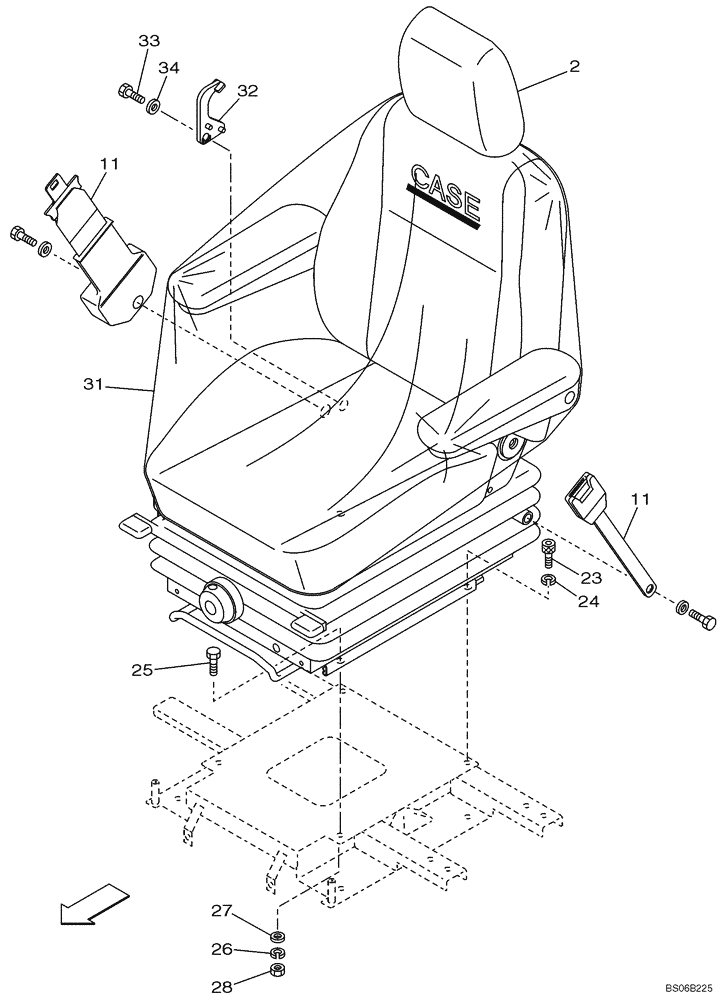

Запчасти Case CX290B (09-15A) - SEAT AND MOUNTING (09) - CHASSIS/ATTACHMENTS

2

87350977

SEAT HEADREST

1шт.

11

87706012

SEAT BELT

Includes Hardware

1шт.

23

863-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

2шт.

24

892-11008

LOCK WASHER,8mm ID

2шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

183-108VR

SPRING WASHER

2шт.

31

87344650

DRIVER SEAT

See Figure 09-15, Also Includes REF 2

1шт.

32

KHN3003

LOCKING DEVICE

1шт.

33

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

1шт.

34

150811A1

WASHER

M12

1шт.
