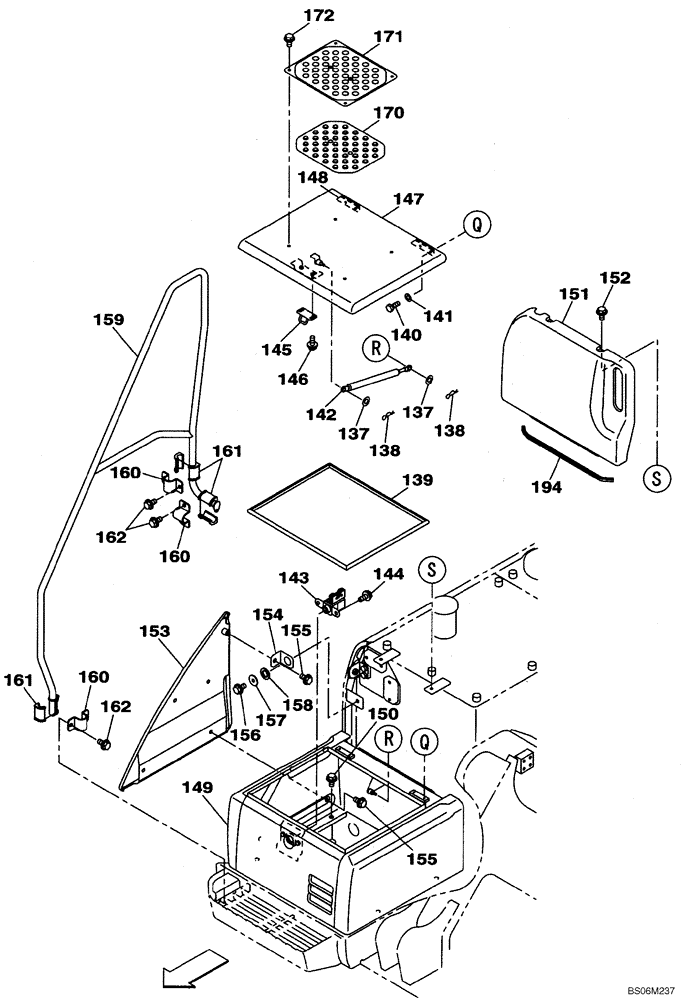

Запчасти Case CX290B (09-08) - STORAGE BOX - INSULATION (09) - CHASSIS/ATTACHMENTS

137

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

138

153077A1

COTTER PIN

2шт.

139

KRN16030

SEALING STRIP

Replaces KTN1391

1шт.

140

KAN2771

BOLT,Spcl

4шт.

141

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

4шт.

142

KHN12750

GAS STRUT

1шт.

143

KHN12730

LOCK

1шт.

144

166351A1

BOLT,Sems, M10 x 20mm

2шт.

145

KHN12740

SUPPORT

1шт.

146

166350A1

BOLT

2шт.

147

KRN12360G1

COVER

1шт.

148

KHN3390

HINGE

2шт.

149

KRN12350G1

COVER

1шт.

150

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

151

KRN12370G1

COVER

1шт.

152

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

153

KHN12710Y2

COVER

1шт.

154

KHN12720

SUPPORT

1шт.

155

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

156

166352A1

BOLT

1шт.

157

162409A1

WASHER

1шт.

158

KHN2061

WASHER

1шт.

159

KHN12681B1

STAY

Replaces KHN12680B1

1шт.

160

KHN12690

COLLAR

3шт.

161

KHN12700

COLLAR

6шт.

162

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

170

KHN10940

RUBBER PAD

1шт.

171

KHN13510B1

COVER

1шт.

172

KHN13540

BOLT,Spcl

4шт.

194

KRN12790

SEAL PROTECTION

1шт.
