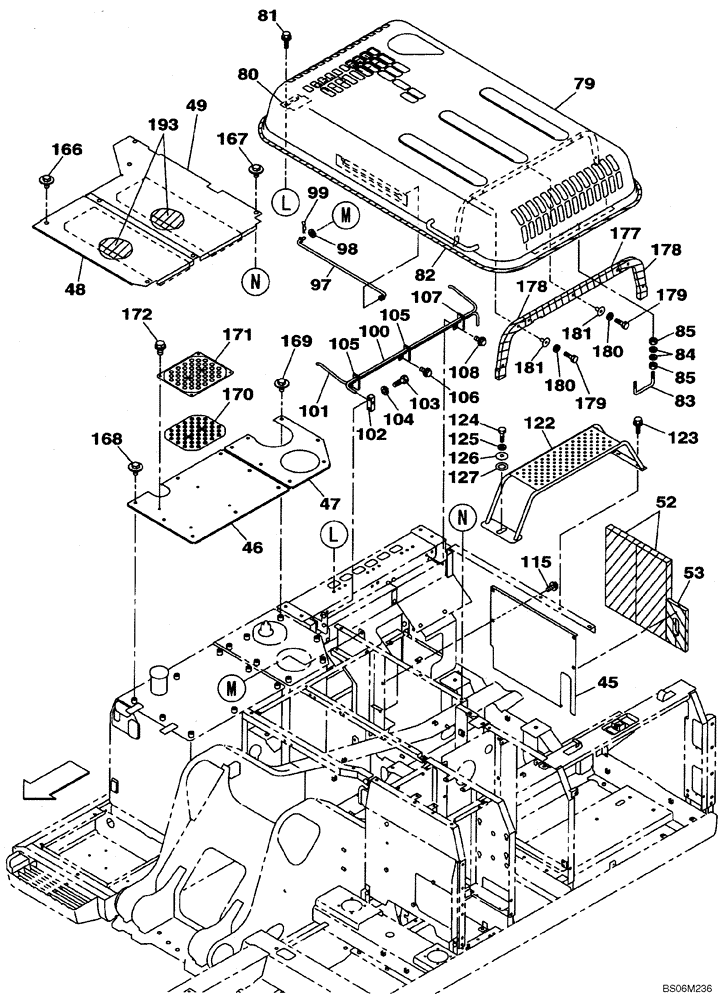

Запчасти Case CX290B (09-07) - HOOD, ENGINE - INSULATION (09) - CHASSIS/ATTACHMENTS

45

KBN10840

COVER

1шт.

46

KBN10940G1

COVER

1шт.

47

KBN10950G1

COVER

1шт.

48

KBN10960G1

COVER

1шт.

49

KBN10970G1

COVER

1шт.

52

KBN11190

NOISE PROTECTION

2шт.

53

KBN11200

SEAL

1шт.

79

KBN13070G1

ENGINE HOOD

Incls. 80, Replaces KBN10650G1, KBN11740G1

1шт.

80

KTN1287

HINGE

3шт.

82

166352A1

BOLT

9шт.

82

KTN1312

PACKING

1шт.

83

KTN1274

HOOK

1шт.

84

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

85

829-1416

NUT,M16, Cl 10

4шт.

97

166679A1

STAY

1шт.

98

166575A1

SHIM

1шт.

99

KHN2373

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

100

KBN10810

TORSION BAR

1шт.

101

KTN1307

SPRING

1шт.

102

KBN1097

SUPPORT

1шт.

103

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

104

150811A1

WASHER

2шт.

105

KTN1313

SUPPORT

2шт.

106

166352A1

BOLT

4шт.

107

166723A1

BRACKET

1шт.

108

166352A1

BOLT

2шт.

115

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

122

KSN1274

STEP

1шт.

123

166352A1

BOLT

2шт.

124

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

125

150811A1

WASHER

1шт.

126

162409A1

WASHER

1шт.

127

KHN2061

WASHER

1шт.

166

KHN12020

BOLT,Spcl

4шт.

167

KHN12020

BOLT,Spcl

3шт.

168

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

169

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

170

KHN10940

RUBBER PAD

1шт.

171

KHN13510B1

COVER

1шт.

172

KHN13540

BOLT,Spcl

4шт.

177

KBN10820

SEAL

1шт.

178

KBN13060

SEAL

Replaces KBN10830

2шт.

179

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

7шт.

180

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

181

KHH0358

RETAINER

7шт.

193

KBN11140

NOISE PROTECTION

2шт.
