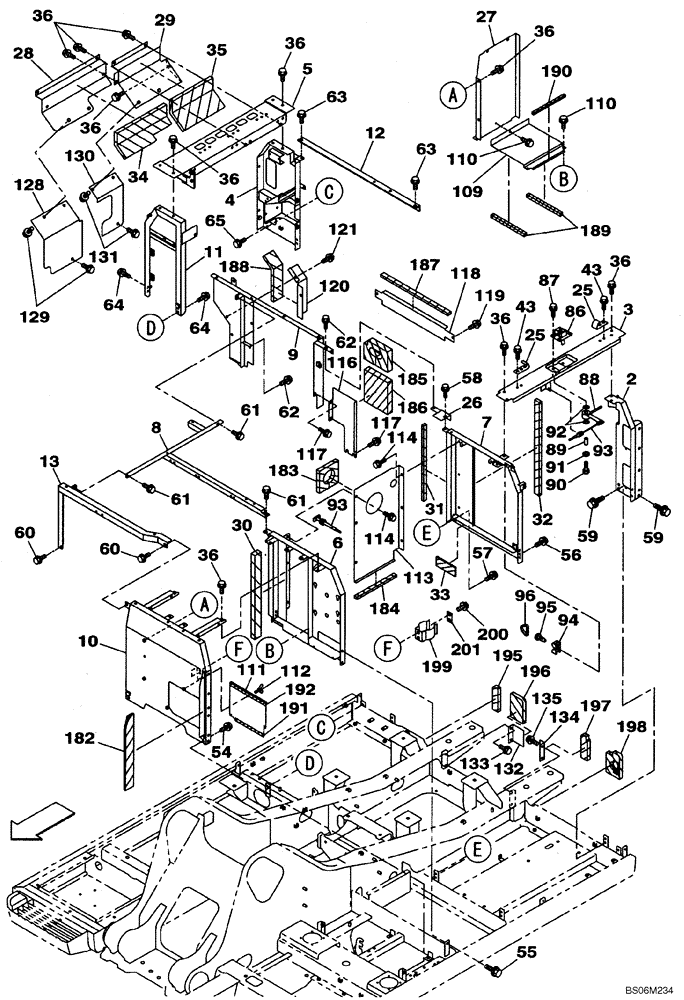

Запчасти Case CX290B (09-05) - FRAMES, COVERS - INSULATION (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
UPPER STRUCTURE
1шт.
2
KBN10700
SUPPORT ASSY.
1шт.
3
KBN10710G1
SUPPORT ASSY.
1шт.
4
KBN11520
SUPPORT ASSY.
1шт.
5
KBN10730G1
SUPPORT ASSY.
1шт.
6
KBN11530
SUPPORT ASSY.
1шт.
7
KBN11540
SUPPORT ASSY.
1шт.
8
KBN10760
SUPPORT ASSY.
1шт.
9
KBN10770
SUPPORT ASSY.
1шт.
10
KBN10900
SUPPORT ASSY.
1шт.
11
KBN10910
SUPPORT ASSY.
1шт.
12
KBN10920
SUPPORT ASSY.
1шт.
13
KBN10930
SUPPORT ASSY.
1шт.
25
KSN1241
SUPPORT
2шт.
26
KBN11080
BRACKET
1шт.
27
KBN10880
COVER
1шт.
28
KBN11030
COVER
1шт.
29
KBN11050
COVER
1шт.
30
KRN10710
SEAL
1шт.
31
KBN11240
SEAL
1шт.
32
KBN11250
SEAL
1шт.
33
KBN11260
SEAL
1шт.
34
KBN11090
NOISE PROTECTION
1шт.
35
KBN11110
NOISE PROTECTION
1шт.
36
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
13шт.
43
166352A1
BOLT
4шт.
54
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
55
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
56
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
57
166352A1
BOLT
2шт.
58
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
1шт.
59
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
60
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
61
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
62
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
63
166352A1
BOLT
2шт.
64
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
65
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
86
KTN1400
LOCK
1шт.
87
166352A1
BOLT
4шт.
88
KTN1319
LINK
1шт.
89
KTN1386
SPACER
1шт.
90
827-8050
BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9
1шт.
91
153081A1
WASHER
1шт.
92
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
2шт.
93
KSN1283
CABLE
1шт.
94
150860A1
COLLAR
1шт.
95
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
96
150067A1
MOUNTING CLIP
1шт.
109
KRN10490
COVER
1шт.
110
166350A1
BOLT
4шт.
111
KHN12760
COVER
1шт.
112
BHN0292
BOLT
Wing
3шт.
113
KBN11550
COVER
1шт.
114
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
6шт.
116
KBN10860
COVER
1шт.
117
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
118
KBN10850
COVER
1шт.
119
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
120
KBN10870
COVER
1шт.
121
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
128
KBN11040
COVER
1шт.
129
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
130
KBN11060
COVER
1шт.
131
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
132
KBN11600
COVER
1шт.
133
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
134
KBN11610
COVER
1шт.
135
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
182
KRN12770
SEAL
1шт.
183
KBN11170
SEAL
1шт.
184
KBN11510
SEAL
1шт.
185
KBN11210
SEAL
1шт.
186
KBN11230
NOISE PROTECTION
1шт.
187
KBN11220
SEAL
1шт.
188
KBN11100
NOISE PROTECTION
1шт.
189
KRN10700
SEAL
2шт.
190
KRN14530
SEAL
1шт.
191
KRN14530
SEAL
1шт.
192
KRN14540
SEAL
1шт.
195
KBN11560
SEAL
1шт.
196
KBN11570
SEAL
1шт.
197
KBN11580
SEAL
1шт.
198
KBN11590
SEAL
1шт.
199
152772A1
HOLDER
Grease Gun
1шт.
200
166351A1
BOLT,Sems, M10 x 20mm
2шт.
201
KHN3548
PLATE
1шт.
Выбрано товаров: 87
