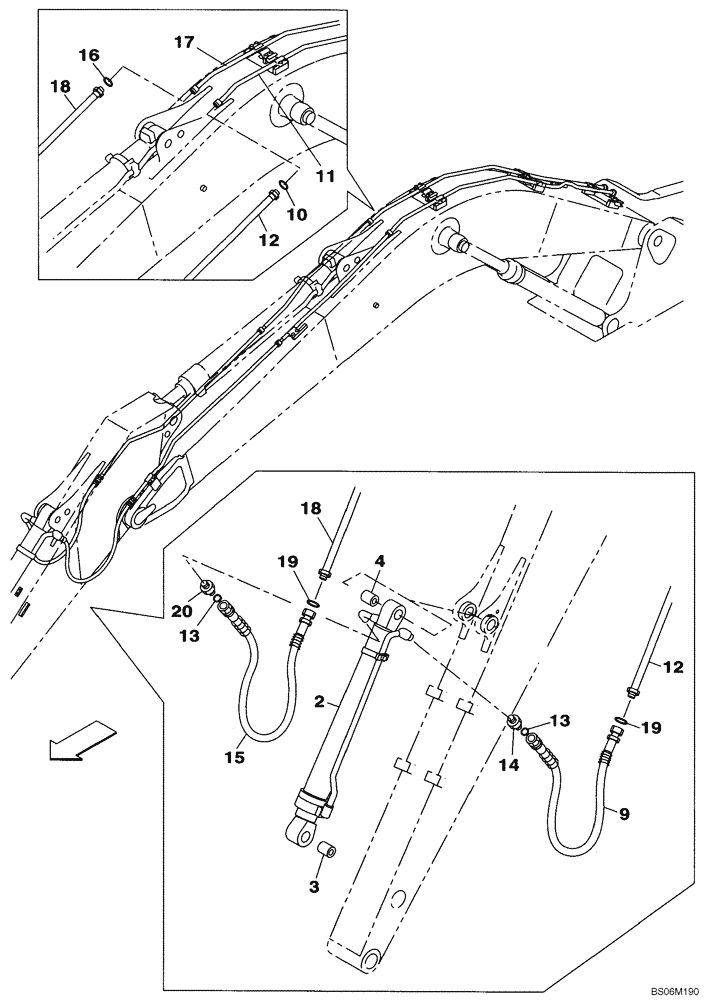

Запчасти Case CX290B (08-98) - HYDRAULICS - BUCKET - W/3.66 METER ARM (08) - HYDRAULICS

2

KBV13620

BUCKET CYLINDER

Incl. 3, 4; See Figure 08-86

1шт.

2

KBV13620R

REMAN-HYD CYLINDER

CX290B CRAWLER EXCAVATOR TIER 3 (NA), BUCKET, W/3.66 METER ARM (1/07-)

1шт.

2

KBV13620C

CORE-HYD CYLINDER

Return Number

1шт.

3

KBV13750

SELF LUB RING

1шт.

4

KBV1361

SELF LUB RING

1шт.

9

KBV16820

HYDRAULIC HOSE

1шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

11

KBV15030Y2

HYD TUBE

1шт.

12

KBV16410Y2

HYD TUBE

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KHJ15840

ADAPTER

1шт.

15

KBV16820

HYDRAULIC HOSE

1шт.

16

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

17

KBV15050Y2

HYD TUBE

1шт.

18

KBV16420Y2

HYD TUBE

1шт.

19

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

20

KHJ15840

ADAPTER

1шт.
