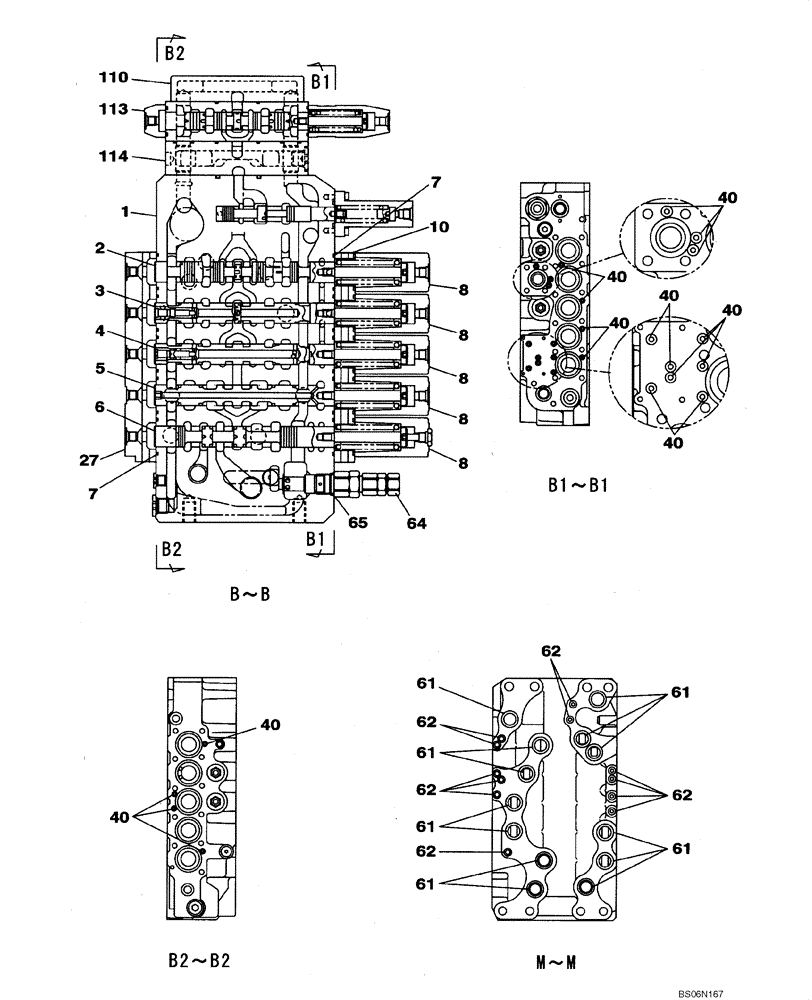

Запчасти Case CX290B (08-65) - KBJ11001 VALVE ASSY - CONTROL (08) - HYDRAULICS

KBJ11001

CONTROL VALVE

Includes All Parts On Figures 08-63 - 08-68

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Valve

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Spool

1шт.

5

NSS

NOT SOLD SEPARAT

Spool

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

154589A1

O-RING

10шт.

8

LR015210

CAP

5шт.

10

LR015230

PLATE

1шт.

27

LR015260

PLATE

1шт.

40

154447A1

O-RING

18шт.

61

LE014890

O-RING,3.53mm Thk x 25.7mm ID, Cl 6

13шт.

62

154463A1

O-RING

12шт.

64

LJ015170

VALVE PRESSURE RELIE

Incl. 65

1шт.

65

155223A1

O-RING

1шт.

110

LT001660

END PLATE

1шт.

KRJ10330

CONTROL VALVE

Includes Ref 113 & 114

1шт.

113

LJ014760

HYD VALVE SECTION

1шт.

114

LJ014770

CONNECTING BLOCK

1шт.
