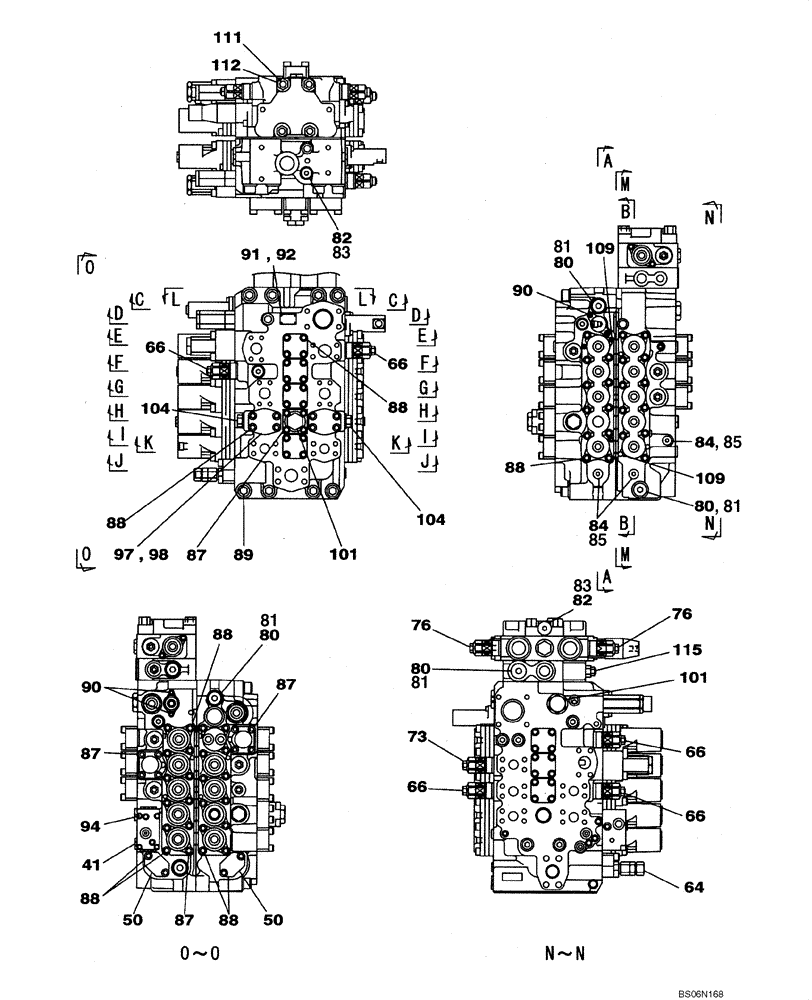

Запчасти Case CX290B (08-63) - KBJ11001 VALVE ASSY - CONTROL (08) - HYDRAULICS

KBJ11001

CONTROL VALVE

Includes All Parts On Figures 08-63 - 08-68

1шт.

41

LR015280

BODY

1шт.

50

LH00250

CAP

2шт.

64

LJ015170

VALVE PRESSURE RELIE

See Figure 08-68

1шт.

66

LJ00734

HYDRAULIC VALVE

See Figure 08-68

5шт.

73

LJ015180

VALVE PRESSURE RELIE

See Figure 08-68

1шт.

76

LJ014750

CHECK VALVE

See Figure 08-68

2шт.

80

163370A1

PLUG

Incl. 81

4шт.

81

154487A1

O-RING

1шт.

82

163369A1

PLUG

Incl. 83

10шт.

83

154475A1

O-RING

1шт.

84

163972A1

PLUG

Inc. 85

3шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

87

108R010Z055B

BOLT

32шт.

88

108R010Z040B

BOLT

M10 x 40

66шт.

89

108R016Z130B

BOLT

M16 x 130

8шт.

90

LUC0118

BOLT,Hex Skt Hd

4шт.

91

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

92

NSS

NOT SOLD SEPARAT

Rivet

4шт.

94

LA011120

BOLT,Hex Skt Hd

4шт.

97

LR00579

PLUG

2шт.

98

168198A1

O-RING

2шт.

101

LK00302

PLUG

2шт.

104

165839A1

PLUG

2шт.

109

LA011130

BOLT,Hex Skt Hd

2шт.

111

LB011900

TIE-ROD

4шт.

112

LUC0094

SPECIAL NUT

4шт.

115

LJ014780

CHECK VALVE

1шт.
