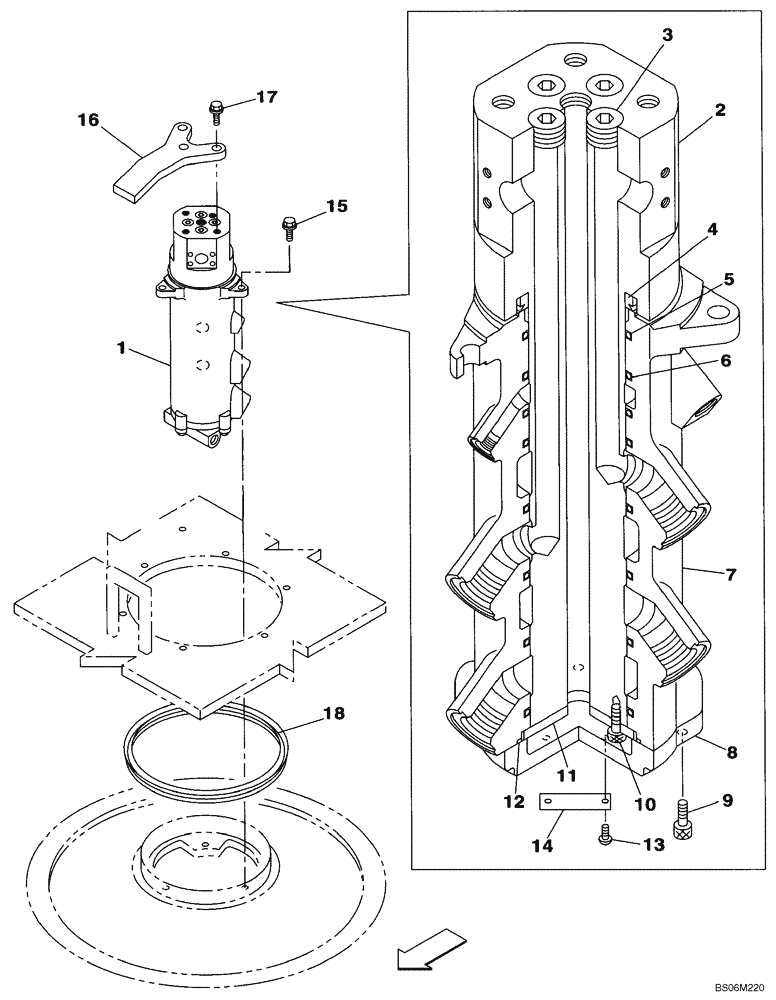

Запчасти Case CX290B (08-54) - HYDRAULICS - JOINT, SWIVEL CENTER (08) - HYDRAULICS

1

KSA1305

HYDRAULIC SWIVEL

Incl. 2 - 14

1шт.

1

KSA1305R

REMAN-HYDRAULIC SWIV

CX290B CRAWLER EXCAVATOR TIER 3 (NA), SWIVEL CENTER (1/07-)

1шт.

1

KSA1305C

CORE-HYDRAULIC SWIV

Return Number

1шт.

2

KSA1303

SHAFT

Incl. 3

1шт.

3

150829A1

PLUG

4шт.

4

KTA1092

SHAFT SEAL

1шт.

5

KHA10120

O-RING

Replaces 154712A1

1шт.

6

KTA1093

SEALING RING

SEALRING

7шт.

7

KSA1304

ROTOR

1шт.

8

KTA1095

COVER

1шт.

9

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

10

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

11

KTA1096

PLATE

1шт.

12

154761A1

O-RING,119.4mm ID x 3.1mm Width

1шт.

13

NSS

NOT SOLD SEPARAT

Screw

2шт.

14

NSS

NOT SOLD SEPARAT

Nameplate

1шт.

15

105R012Y045R

BOLT

BOLT, SEMS, Replaces 166352A1

3шт.

16

KSA1140

SUPPORT

1шт.

17

166373A1

BOLT,Sems, M16 x 40mm

3шт.

18

KRA11090

SEALING RING

SEALRING

1шт.
