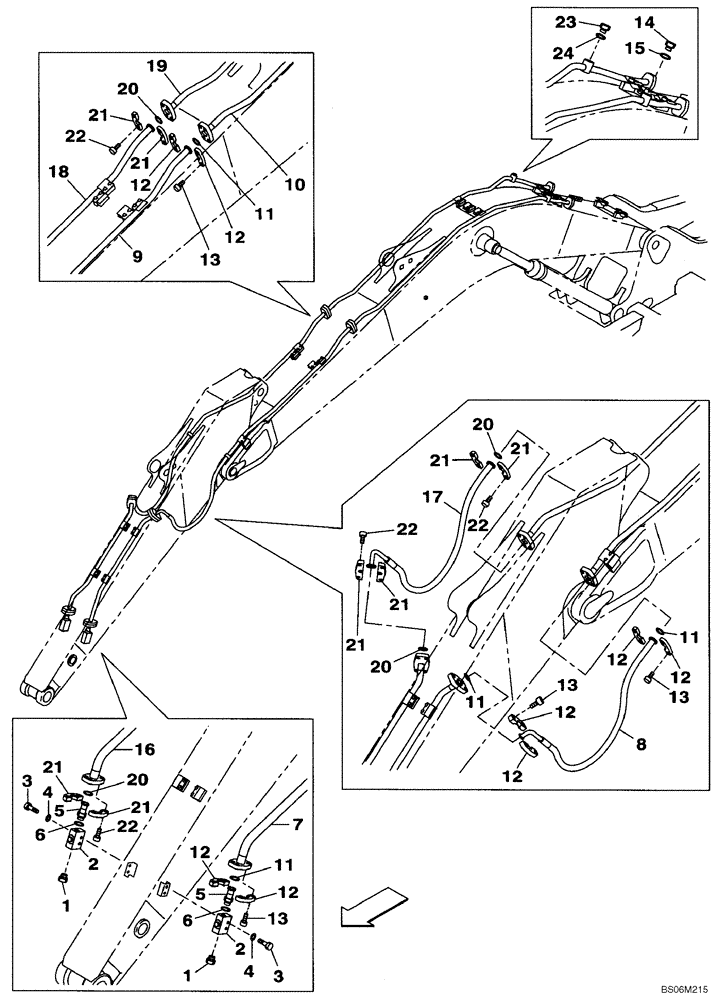

Запчасти Case CX290B (08-41C) - OPTION LINE (BAR BASE) - 3.66 M ARM (08) - HYDRAULICS

1

162335A1

PLUG

2шт.

2

KHV10700

VALVE SECTION

Until N7EAN1132 And N7SAN1109

2шт.

2

KHV11100

SHUT-OFF VALVE

Since N7EAN1133 And N7SAN1110

2шт.

4

150811A1

WASHER

4шт.

3

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

Until N7EAN1132 And N7SAN1109

4шт.

3

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

Since N7EAN1133 And N7SAN1110

4шт.

5

KHV0451

FITTING

Incl. 6

2шт.

6

154559A1

O-RING

1шт.

8

KBV17880

HYDRAULIC HOSE,31.80 mm ID x 2400.00 mm

1шт.

7

KBV14720

HYD TUBE,35.7 mm ID x 42.7 mm OD

Until N7EAN1275 And N8SANxxxx

1шт.

7

KBV19350Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

11

164450A1

O-RING

4шт.

9

KBV14700Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

12

150124A1

FLANGE

8шт.

13

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

9

KBV18900Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

10

KBV14680Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

14

152924A1

PLUG

Incl. 15

1шт.

15

154503A1

O-RING

1шт.

10

KBV18920Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

17

KBV17880

HYDRAULIC HOSE,31.80 mm ID x 2400.00 mm

1шт.

20

164450A1

O-RING

4шт.

16

KBV14730

HYD TUBE,35.7 mm ID x 42.7 mm OD

Until N7EAN1275 And N8SANxxxx

1шт.

21

150124A1

FLANGE

8шт.

22

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

16

KBV19360Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

23

152924A1

PLUG

Incl. 24

1шт.

18

KBV14710Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

24

154503A1

O-RING

1шт.

18

KBV18910Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

19

KBV14690Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

19

KBV18930Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.
