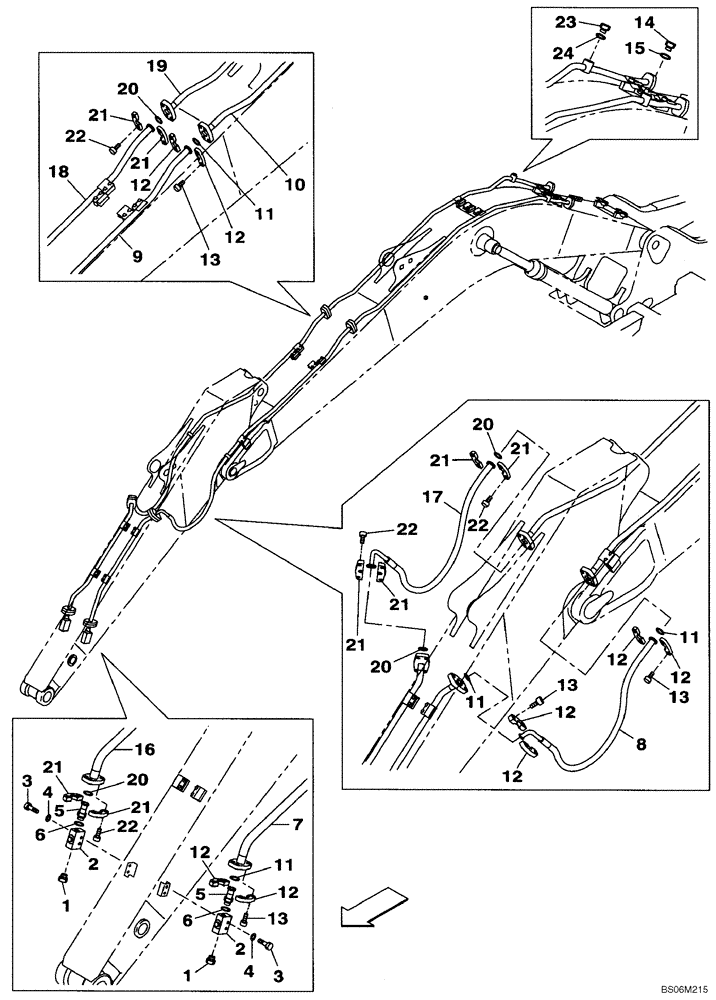

Запчасти Case CX290B (08-41B) - OPTION LINE (BAR BASE) - 2.65 M ARM (08) - HYDRAULICS

1

162335A1

PLUG

2шт.

2

KHV10700

VALVE SECTION

Until N7EAN1132 And N7SAN1109

2шт.

2

KHV11100

SHUT-OFF VALVE

Since N7EAN1133 And N7SAN1110

2шт.

3

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

Until N7EAN1132 And N7SAN1109

4шт.

3

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

Since N7EAN1133 And N7SAN1110

4шт.

4

150811A1

WASHER

4шт.

5

KHV0451

FITTING

Incl. 6

2шт.

6

154559A1

O-RING

1шт.

7

KBV16070

HYD TUBE,38.7 mm ID x 42.7 mm OD

Until N7EAN1275 And N8SANxxxx

1шт.

8

KBV16090

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

1шт.

7

KBV19980Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

9

KBV14700Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

11

164450A1

O-RING

4шт.

9

KBV18900Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

10

KBV14680Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

12

150124A1

FLANGE

8шт.

13

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

10

KBV18920Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

14

152924A1

PLUG

Incl. 15

1шт.

15

154503A1

O-RING

1шт.

17

KBV16090

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

1шт.

16

KBV16080

HYD TUBE,38.7 mm ID x 42.7 mm OD

Until N7EAN1275 And N8SANxxxx

1шт.

20

164450A1

O-RING

4шт.

16

KBV19990Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

21

150124A1

FLANGE

8шт.

22

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

18

KBV14710Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

23

152924A1

PLUG

Incl. 24

1шт.

18

KBV18910Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

19

KBV14690Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

24

154503A1

O-RING

1шт.

19

KBV18930Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.
