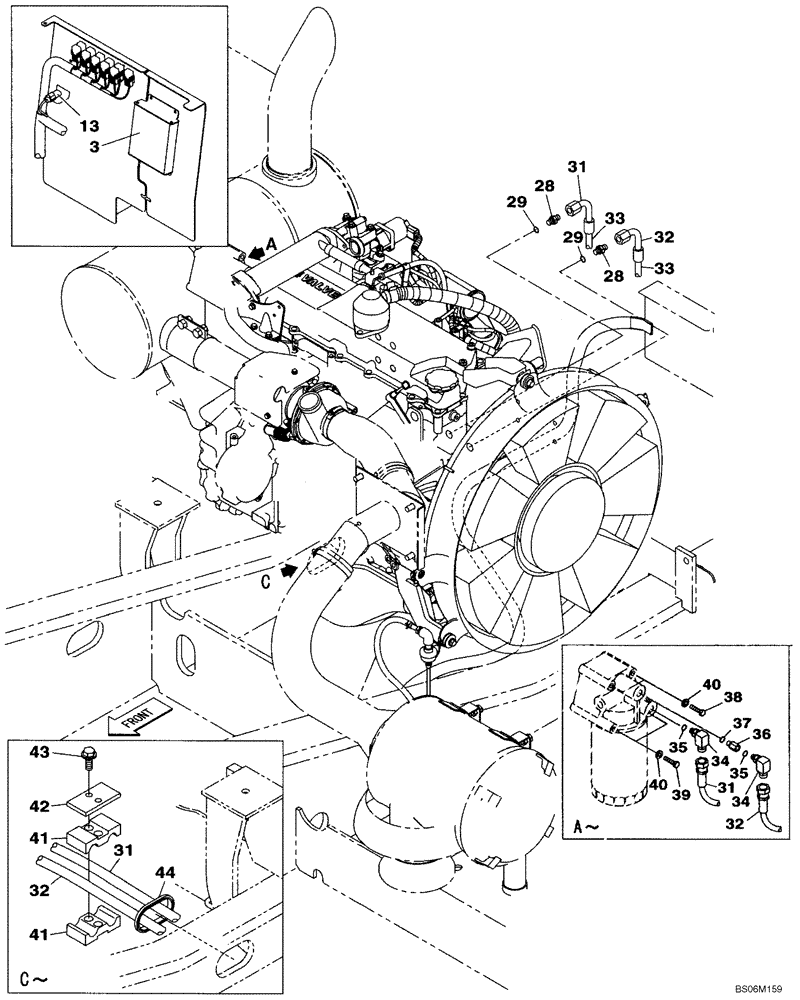

Запчасти Case CX290B (02-02) - ENGINE OIL SUPPLY LINES (02) - ENGINE

28

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 29

2шт.

29

154503A1

O-RING

1шт.

31

KRH10330

HYDRAULIC HOSE,19.00 mm ID x 1350.00 mm

Replaces KBH10580

1шт.

32

KBH10590

HYDRAULIC HOSE,19.00 mm ID x 1450.00 mm

1шт.

33

157862A1

PLASTIC-RUBBER TUBE

(Replaces KBR0819)

2шт.

34

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 35

2шт.

35

154503A1

O-RING

1шт.

36

152012A1

ELEC CONNECTOR

Incl. 37

1шт.

37

154503A1

O-RING

1шт.

38

102R008Y110R

BOLT

2шт.

39

KHH0515

BOLT

2шт.

40

153081A1

WASHER

4шт.

41

KRH10200

COLLAR

2шт.

42

KRH10210

PLATE

1шт.

43

166052A1

BOLT

2шт.

44

KRH10470

GROMMET

1шт.
