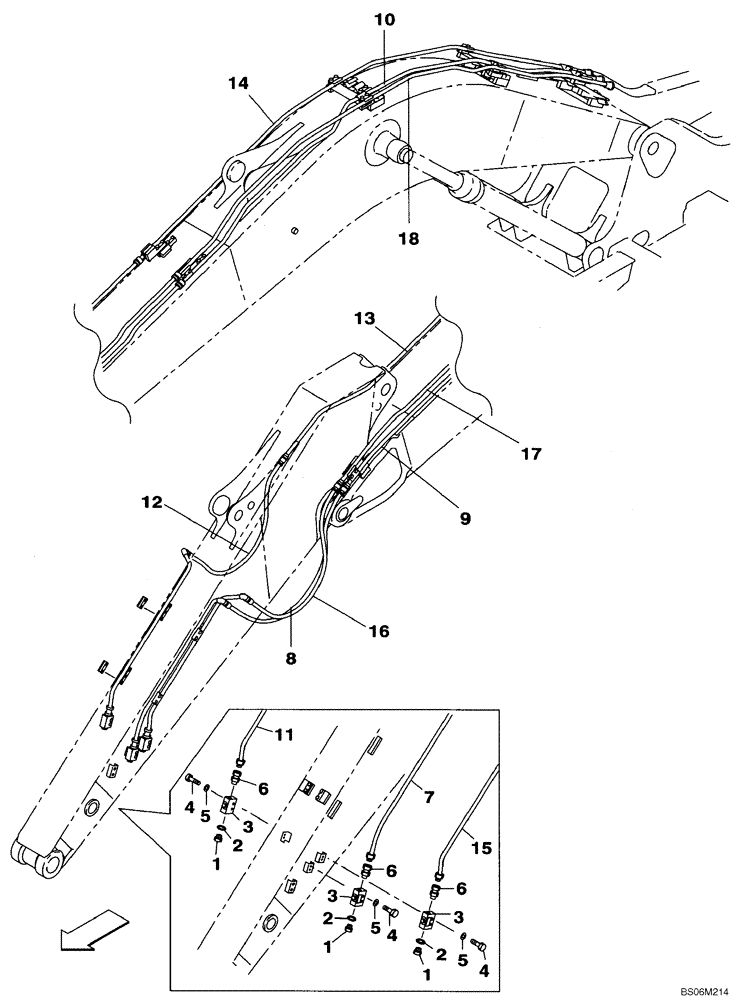

Запчасти Case CX290B (08-40C) - SECOND OPTION LINE, 3.66 M ARM (08) - HYDRAULICS

1

159085A1

PLUG

Incl. 2

3шт.

2

154487A1

O-RING

1шт.

3

KHV10670

VALVE SECTION

Until N7EAN1132 And N7SAN1109

1шт.

3

KHV10440

VALVE

Since N7EAN1133 And N7SAN1110

3шт.

4

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

Until N7EAN1132 And N7SAN1109

6шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

Since N7EAN1133 And N7SAN1110

6шт.

5

150409A1

WASHER

If Used

6шт.

6

KHJ1939

FITTING

3шт.

7

KBV14830

HYD TUBE,16.1 mm ID x 21.7 mm OD

Until N7EAN1128 - N7SAN1113

1шт.

7

KBV19510Y2

HYD TUBE

Until N7EAN1129 To 1275 And N7SAN1114 To N8SANxxxx

1шт.

7

KBV21720Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

8

KBV16760

HYDRAULIC HOSE,12.70 mm ID x 2200.00 mm

Until N7EAN1128 - N7SAN1113

1шт.

8

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

Since N7EAN1276 and N8SANxxxx

1шт.

9

KBV14800Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

9

KBV19370Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

10

KBV14770Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

10

KBV19400Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

11

KBV14840Y2

HYD TUBE

Until N7EAN1128 - N7SAN1113

1шт.

11

KBV19520Y2

HYD TUBE

Until N7EAN1129 To 1275 And N7SAN1114 To N8SANxxxx

1шт.

11

KBV21730Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

13

KBV14810Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

13

KBV19380Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

12

KBV16760

HYDRAULIC HOSE,12.70 mm ID x 2200.00 mm

Until N7EAN1128 - N7SAN1113

1шт.

14

KBV14780Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

12

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

Since N7EAN1276 and N8SANxxxx

1шт.

14

KBV19410Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

15

KBV14850Y2

HYD TUBE

Until N7EAN1128 - N7SAN1113

1шт.

17

KBV14820Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

17

KBV19390Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

15

KBV19530Y2

HYD TUBE

Until N7EAN1129 To 1275 And N7SAN1114 To N8SANxxxx

1шт.

15

KBV21740Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

18

KBV14770Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

16

KBV16770

HYDRAULIC HOSE,12.70 mm ID x 2200.00 mm

Until N7EAN1128 - N7SAN1113

1шт.

18

KBV19400Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

19

KBV19810

CLAMP BRACKET

Not Illustrated, Replaces KBV17380, KBV18740

2шт.

16

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

Since N7EAN1276 and N8SANxxxx

1шт.

20

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

Not Illustrated

3-6шт.

21

829-1012

NUT,M12, Cl 10

Not Illustrated

3-6шт.
