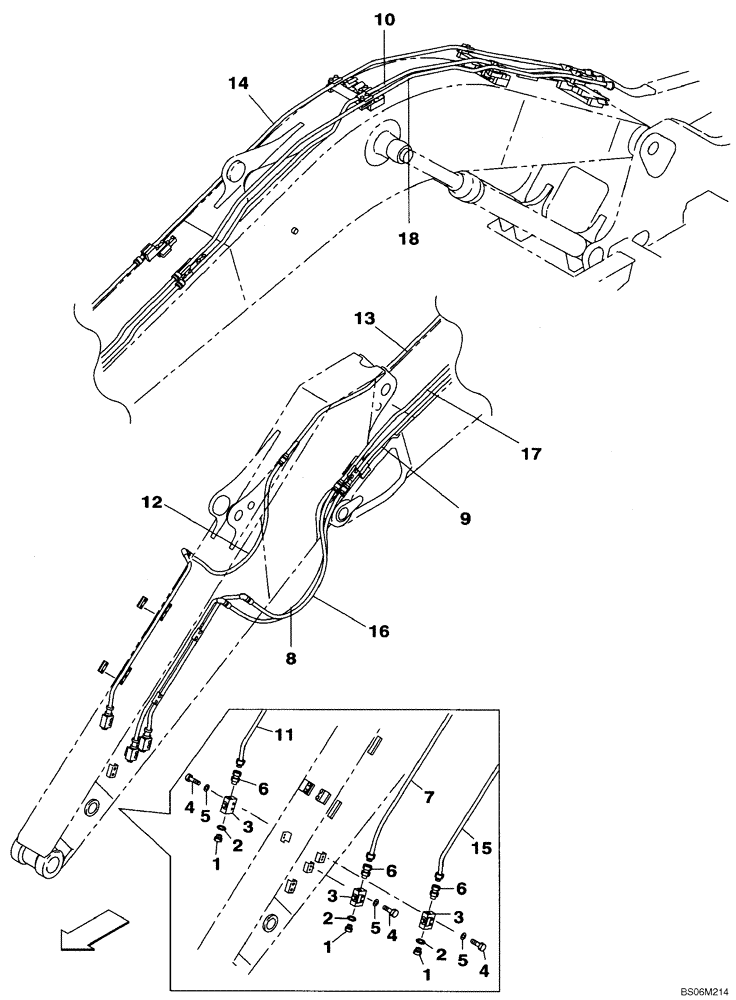

Запчасти Case CX290B (08-40A) - SECOND OPTION LINE, 3.18 M ARM (08) - HYDRAULICS

1

159085A1

PLUG

Incl. 2

3шт.

2

154487A1

O-RING

1шт.

3

KHV10670

VALVE SECTION

Until N7EAN1132 And N7SAN1109

1шт.

3

KHV10440

VALVE

Since N7EAN1133 And N7SAN1110

3шт.

4

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

Until N7EAN1132 And N7SAN1109

6шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

Since N7EAN1133 And N7SAN1110

6шт.

5

150409A1

WASHER

If Used

6шт.

6

KHJ1939

FITTING

3шт.

7

KBV14830

HYD TUBE,16.1 mm ID x 21.7 mm OD

Until N7EAN1275 And N8SANxxxx

1шт.

7

KBV19420Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

8

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

1шт.

9

KBV14800Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

9

KBV19370Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

10

KBV14770Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

10

KBV19400Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

11

KBV14780Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

11

KBV19430Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

12

KBV14840Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

12

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

Since N7EAN1276 And N8SANxxxx

1шт.

13

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

Until N7EAN1275 And N8SANxxxx

1шт.

13

KBV19380Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

14

KBV14810Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

14

KBV19410Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

15

KBV14850Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

15

KBV19440Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

16

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

Replaces KBV14870 & KBV17400

1шт.

17

KBV14820Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

17

KBV19390Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

18

KBV14770Y2

HYD TUBE

Until N7EAN1275 And N8SANxxxx

1шт.

18

KBV19400Y2

HYD TUBE

Since N7EAN1276 And N8SANxxxx

1шт.

19

KBV19810

CLAMP BRACKET

Not Illustrated, Replaces KBV17380, KBV18740

2шт.

20

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

Not Illustrated

3-6шт.

21

829-1012

NUT,M12, Cl 10

Not Illustrated

3-6шт.
