Запчасти Case CX290B (08-38) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

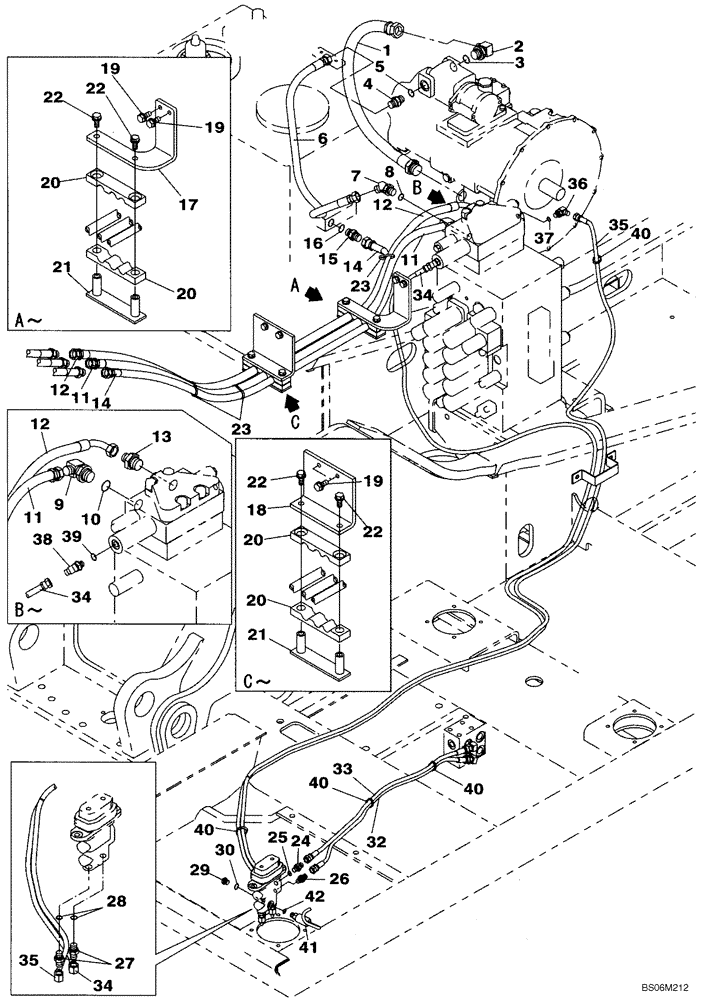

Схема запчастей Case CX290B - (08-38) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS
14
34
33
22
25
19
23
27
29
23
20
19
11
4
3
35
21
41
1
20
12
21
40
5
35
39
34
10
11
19
18
6
22
8
22
9
16
36
12
38
34
40
40
15
28
40
26
17
22
20
20
24
2
11
7
32
37
12
13
14
30
42

Артикул

Название

Примечание

Количество

1

KTJ2249

HYDRAULIC HOSE,25.40 mm ID x 800.00 mm

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 3

1шт.

3

154523A1

O-RING

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

KBJ13260

HYDRAULIC HOSE,1500.00 mm

Replaces KBJ11910

1шт.

7

157585A1

ELBOW

Incl. 8

1шт.

8

154487A1

O-RING

1шт.

9

157936A1

ELBOW

Incl. 10

1шт.

10

154503A1

O-RING

1шт.

11

KBJ11930

HYDRAULIC HOSE,12.70 mm ID x 1680.00 mm

1шт.

12

KBJ11920

HYDRAULIC HOSE,12.70 mm ID x 1800.00 mm

1шт.

13

168988A1

ADAPTER

1шт.

14

KBJ11940

HYDRAULIC HOSE,12.70 mm ID x 1850.00 mm

1шт.

15

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 16

1шт.

16

154487A1

O-RING

1шт.

17

KRJ11570

BRACKET

1шт.

18

KBJ11960

BRACKET

1шт.

19

166052A1

BOLT

4шт.

20

KRJ11580

HOSE CLIP

4шт.

21

KRJ11590

SUPPORT

2шт.

22

166052A1

BOLT

4шт.

23

150496A1

MOUNTING CLIP

3шт.

24

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

161841A1

HYD CONNECTOR

1шт.

27

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 28

2шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

159002A1

PLUG

Incl. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

33

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

34

KHJ11480

HYDRAULIC HOSE,6.35 mm ID x 3950.00 mm

1шт.

35

KHJ19010

HOSE

HOSE ASSY., Replaces KHJ14800

1шт.

36

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

150933A1

ELBOW

Incl. 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

150496A1

MOUNTING CLIP

4шт.

41

KHR10820

PRESSURE SWITCH

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

Выбрано товаров: 41
