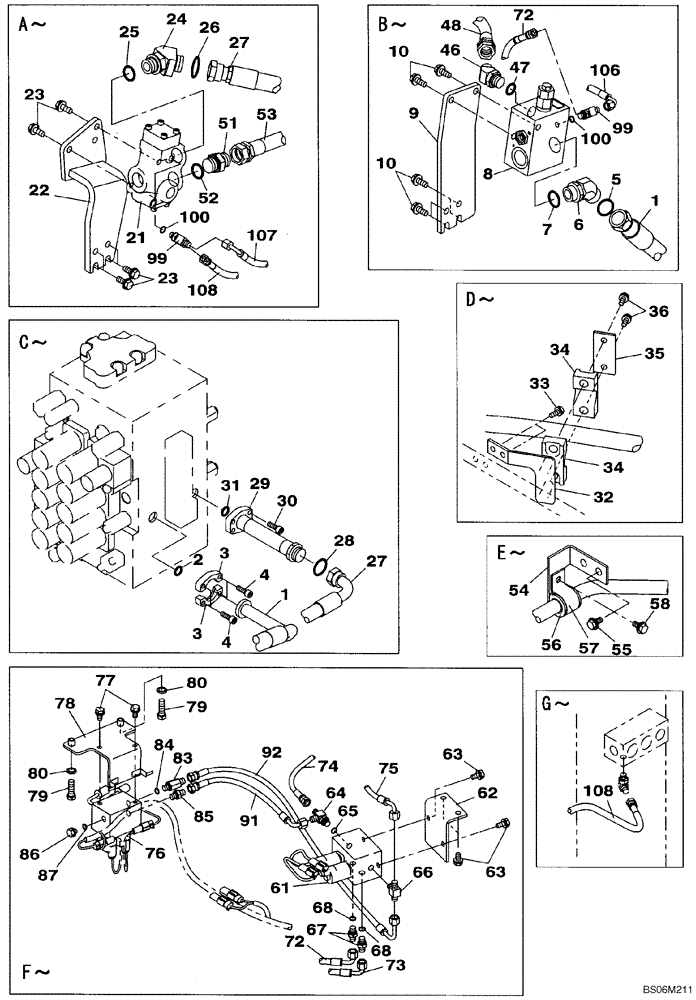

Запчасти Case CX290B (08-37) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

1

KBJ12510

HYDRAULIC HOSE,25.40 mm ID x 1050.00 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ11370

ELBOW

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ10410

VALVE SECTION

See Figure 08-78

1шт.

9

KRJ11470

SUPPORT

1шт.

10

166352A1

BOLT

6шт.

21

KHJ10420

VALVE SECTION

See Figure 08-77

1шт.

22

KRJ16050

SUPPORT

1шт.

23

166352A1

BOLT

6шт.

24

KHJ11370

ELBOW

Incl. 25

1шт.

25

154523A1

O-RING

1шт.

26

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

27

KBJ11800

HYDRAULIC HOSE,25.40 mm ID x 1600.00 mm

1шт.

28

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

29

KBJ11870

HYD TUBE,26 mm ID x 34 mm OD

1шт.

30

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

2шт.

31

155211A1

O-RING

1шт.

32

KBJ11840

BRACKET

1шт.

33

166352A1

BOLT

2шт.

34

KRJ11450

HOSE CLIP

2шт.

35

KRJ10800

PLATE

1шт.

36

166052A1

BOLT

2шт.

46

157586A1

ELBOW

Incl. 47

1шт.

47

154503A1

O-RING

1шт.

48

KBJ13790

HYDRAULIC HOSE,740.00 mm

Replaces KBJ11820

1шт.

51

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 52

1шт.

52

154523A1

O-RING

1шт.

53

KBJ11830

HYDRAULIC HOSE,25.40 mm ID x 1220.00 mm

1шт.

54

KBJ11850

BRACKET

1шт.

55

166352A1

BOLT

2шт.

56

KHJ2680

COLLAR CLAMP

1шт.

57

KBJ11860

SUPPORT

1шт.

58

166352A1

BOLT

1шт.

61

KHJ14000

VALVE SECTION

See Figure 08-79

1шт.

62

KHJ14670

SUPPORT

1шт.

63

166351A1

BOLT,Sems, M10 x 20mm

4шт.

64

159497A1

TEE

Incl. 65

1шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

66

167321A1

TEE

1шт.

67

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 68

2шт.

68

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

KHJ19010

HOSE

HOSE ASSY., Replaces KHJ14800

1шт.

73

KHJ14790

HYDRAULIC HOSE

4100 mm (161-17/16 in)

1шт.

74

KHJ14650

HYDRAULIC HOSE

650 (25-5/8 in)

1шт.

75

KHJ2048

HOSE,6.3mm ID x 750mm L

800 mm (31-1/2 in)

1шт.

76

KHJ14000

VALVE SECTION

See Figure 08-79

1шт.

77

166351A1

BOLT,Sems, M10 x 20mm

2шт.

78

KHJ14680

SUPPORT

1шт.

79

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

80

150409A1

WASHER

2шт.

83

162554A1

FITTING

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

161841A1

HYD CONNECTOR

1шт.

86

159002A1

PLUG

Incl. 87

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

KHJ2180

HOSE,6.3mm ID x 500mm L

500 mm (19-11/16 in)

1шт.

92

KHJ2194

HOSE,6.3mm ID x 650mm L

650 mm (25-5/8 in)

1шт.

99

159497A1

TEE

Incl. 100

2шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

106

KHJ2088

HOSE

850 mm (33-1/2 in)

1шт.

107

KHJ2091

HOSE

1050 mm (41-5/16 in)

1шт.

108

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.
