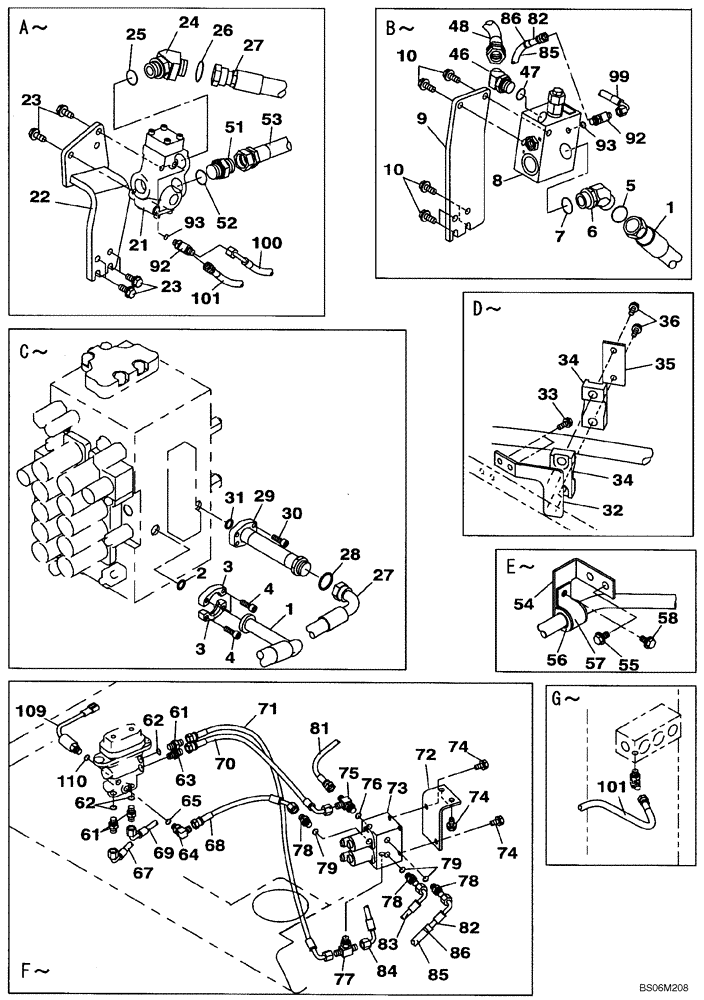

Запчасти Case CX290B (08-34) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, PEDAL ACTIVATED (08) - HYDRAULICS

1

KBJ12510

HYDRAULIC HOSE,25.40 mm ID x 1050.00 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ11370

ELBOW

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ10410

VALVE SECTION

See Figure 08-78

1шт.

9

KRJ11470

SUPPORT

1шт.

10

166352A1

BOLT

6шт.

21

KHJ10420

VALVE SECTION

See Figure 08-77

1шт.

22

KRJ16050

SUPPORT

1шт.

23

166352A1

BOLT

6шт.

24

KHJ11370

ELBOW

Incl. 25

1шт.

25

154523A1

O-RING

1шт.

26

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

27

KBJ11800

HYDRAULIC HOSE,25.40 mm ID x 1600.00 mm

1шт.

28

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

29

KBJ11870

HYD TUBE,26 mm ID x 34 mm OD

1шт.

30

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

31

155211A1

O-RING

1шт.

32

KBJ11840

BRACKET

1шт.

33

166352A1

BOLT

2шт.

34

KRJ11450

HOSE CLIP

2шт.

35

KRJ10800

PLATE

1шт.

36

166052A1

BOLT

2шт.

46

157586A1

ELBOW

Incl. 47

1шт.

47

154503A1

O-RING

1шт.

48

KBJ13790

HYDRAULIC HOSE,740.00 mm

Replaces KBJ11820

1шт.

51

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 52

1шт.

52

154523A1

O-RING

1шт.

53

KBJ11830

HYDRAULIC HOSE,25.40 mm ID x 1220.00 mm

1шт.

54

KBJ11850

BRACKET

1шт.

55

166352A1

BOLT

2шт.

56

KHJ2680

COLLAR CLAMP

1шт.

57

KBJ11860

SUPPORT

1шт.

58

166352A1

BOLT

1шт.

61

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 62

3шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

161841A1

HYD CONNECTOR

1шт.

64

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 65

1шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

KHJ13660

HYDRAULIC HOSE

3300 (129-15/16 in)

1шт.

68

KHJ2244

HOSE

600 (23-5/8 in)

1шт.

69

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

70

KHJ2085

HOSE

600 (23-5/8 in)

1шт.

71

KHJ2194

HOSE,6.3mm ID x 650mm L

650 (25-5/8 in)

1шт.

72

KHJ11510

SUPPORT

1шт.

73

KHJ14780

VALVE SECTION

See Figure 08-73

1шт.

74

166351A1

BOLT,Sems, M10 x 20mm

4шт.

75

159497A1

TEE

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

167321A1

TEE

1шт.

78

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 79

3шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

81

KHJ2047

HOSE

650 (25-5/8 in)

1шт.

82

KHJ19010

HOSE

HOSE ASSY. ,Replaces KHJ14800

1шт.

83

KHJ14790

HYDRAULIC HOSE

4100 mm (161-17/16 in)

1шт.

84

KHJ2086

HOSE,6.3mm ID x 700mm L

700 mm (27-1/4 in)

1шт.

85

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1шт.

86

150067A1

MOUNTING CLIP

2шт.

92

159497A1

TEE

Incl. 93

2шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

KHJ2088

HOSE

850 mm (33-1/2 in)

1шт.

100

KHJ2091

HOSE

1050 mm (41-5/16 in)

1шт.

101

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

109

KHR10820

PRESSURE SWITCH

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
