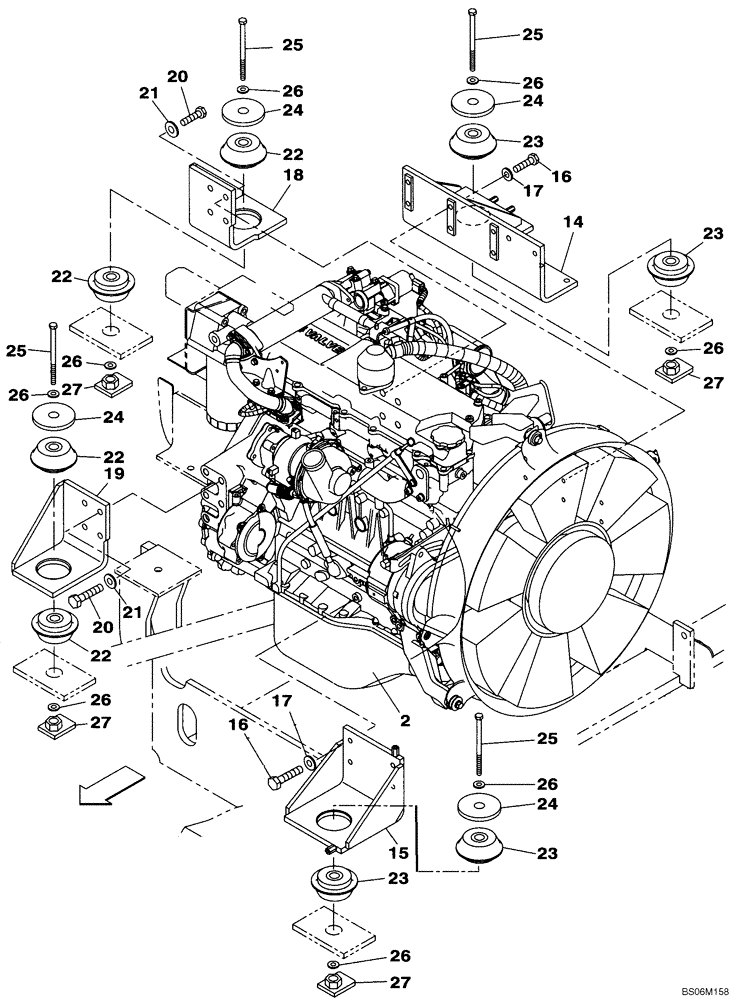

Запчасти Case CX290B (02-01) - ENGINE MOUNTING (02) - ENGINE

2

KBH10560

ENGINE

1шт.

2

KLH10850EC

CORE-ENGINE

Environmental Core

1шт.

2

47609684ER

REMAN-BASIC ENGINE

1шт.

2

47609684EPAC

CORE-BASIC ENGINE

Return Number

1шт.

14

KSH1067

ENGINE MOUNT

1шт.

15

KSH0908

ENGINE MOUNT

1шт.

16

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

10шт.

17

150409A1

WASHER

10шт.

18

KSH0909

ENGINE MOUNT

1шт.

19

KSH0910

ENGINE MOUNT

1шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

21

150811A1

WASHER

8шт.

22

KTH0566

SILENTBLOC

4шт.

23

KTH0567

SILENTBLOC

4шт.

24

150874A1

WASHER

4шт.

25

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

4шт.

26

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

8шт.

27

KSH0923

SPECIAL NUT

4шт.
