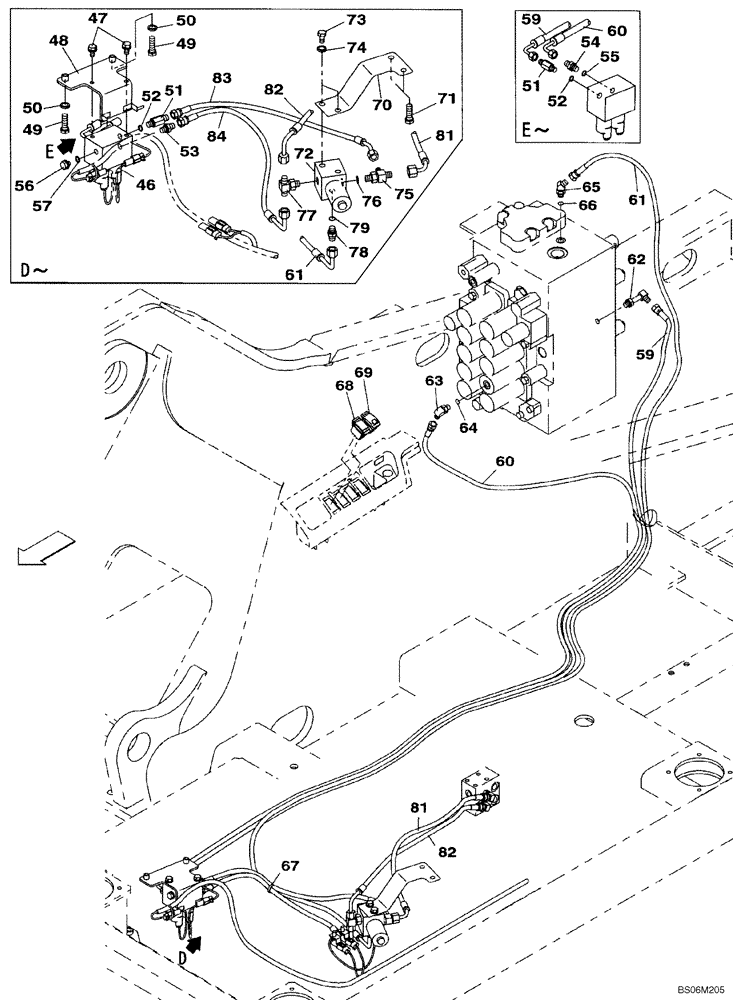

Запчасти Case CX290B (08-31) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

46

KHJ14000

VALVE SECTION

See Figure 08-79

1шт.

47

166351A1

BOLT,Sems, M10 x 20mm

2шт.

48

KHJ14680

SUPPORT

1шт.

49

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

50

150409A1

WASHER

2шт.

51

162554A1

FITTING

Incl. 52

2шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

53

161841A1

HYD CONNECTOR

1шт.

54

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 55

1шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

56

159002A1

PLUG

Incl. 57

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

KHJ13660

HYDRAULIC HOSE

3300 mm (129-15/16 in)

1шт.

60

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

61

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

62

KHJ1178

ELBOW

1шт.

63

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

150933A1

ELBOW

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

150496A1

MOUNTING CLIP

1шт.

68

KHR15020

LIMIT SWITCH,Double-acting

1шт.

69

KHR14460

SWITCH,Low Flow

1шт.

70

KHJ15730

SUPPORT

1шт.

71

166351A1

BOLT,Sems, M10 x 20mm

2шт.

72

162538A1

VALVE

See Figure 08-74

1шт.

73

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

74

183-106VR

SPRING WASHER

2шт.

75

159497A1

TEE

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

167321A1

TEE

1шт.

78

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 79

1шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

81

KHJ2086

HOSE,6.3mm ID x 700mm L

700 mm (27-9/16 in)

1шт.

82

KHJ2036

HOSE

750 mm (29-1/2 in)

1шт.

83

KHJ12100

HYDRAULIC HOSE

520 mm (20-1/2 in)

1шт.

84

KHJ2180

HOSE,6.3mm ID x 500mm L

500 mm (19-11/16 in)

1шт.
