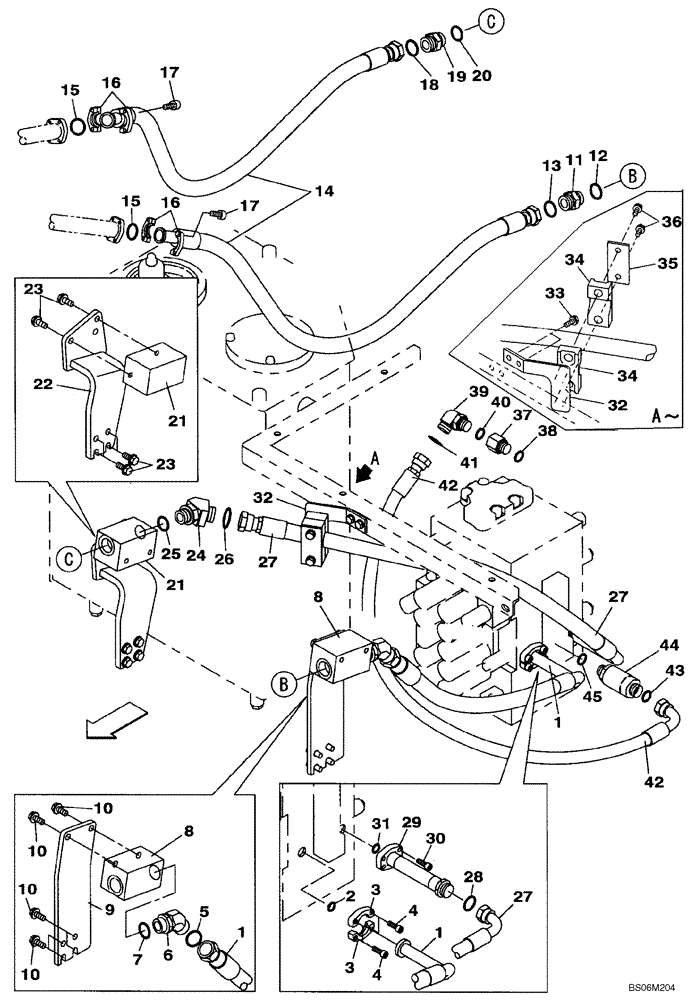

Запчасти Case CX290B (08-30) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

1

KBJ12510

HYDRAULIC HOSE,25.40 mm ID x 1050.00 mm

Replaces KBJ11810

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ11370

ELBOW

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KRJ12170

MANIFOLD VALVE

1шт.

9

KRJ11470

SUPPORT

1шт.

10

166352A1

BOLT

6шт.

11

KHJ1349

ADAPTER

Incl. 12

1шт.

12

154523A1

O-RING

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

14

KBJ11790

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

2шт.

15

164450A1

O-RING

2шт.

16

150124A1

FLANGE

Split

4шт.

17

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

18

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

19

KHJ1349

ADAPTER

Incl. 20

1шт.

20

154523A1

O-RING

1шт.

21

KRJ12170

MANIFOLD VALVE

1шт.

22

KRJ16050

SUPPORT

1шт.

23

166352A1

BOLT

6шт.

24

KHJ11370

ELBOW

Incl. 25

1шт.

25

154523A1

O-RING

1шт.

26

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

27

KBJ11800

HYDRAULIC HOSE,25.40 mm ID x 1600.00 mm

1шт.

28

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

29

KBJ11870

HYD TUBE,26 mm ID x 34 mm OD

1шт.

30

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

31

155211A1

O-RING

1шт.

32

KBJ11840

BRACKET

1шт.

33

166352A1

BOLT

2шт.

34

KRJ11450

HOSE CLIP

2шт.

35

KRJ10800

PLATE

1шт.

36

166052A1

BOLT

2шт.

37

159198A1

ADAPTER

Incl. 38

1шт.

38

154503A1

O-RING

1шт.

39

KHJ1804

ELBOW

Incl. 40

1шт.

40

154503A1

O-RING

1шт.

41

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

42

KBJ12520

HYDRAULIC HOSE,19.00 mm ID x 1250.00 mm

1шт.

43

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

44

KHJ10480

VALVE SECTION

Incl. 45

1шт.

45

154503A1

O-RING

1шт.
