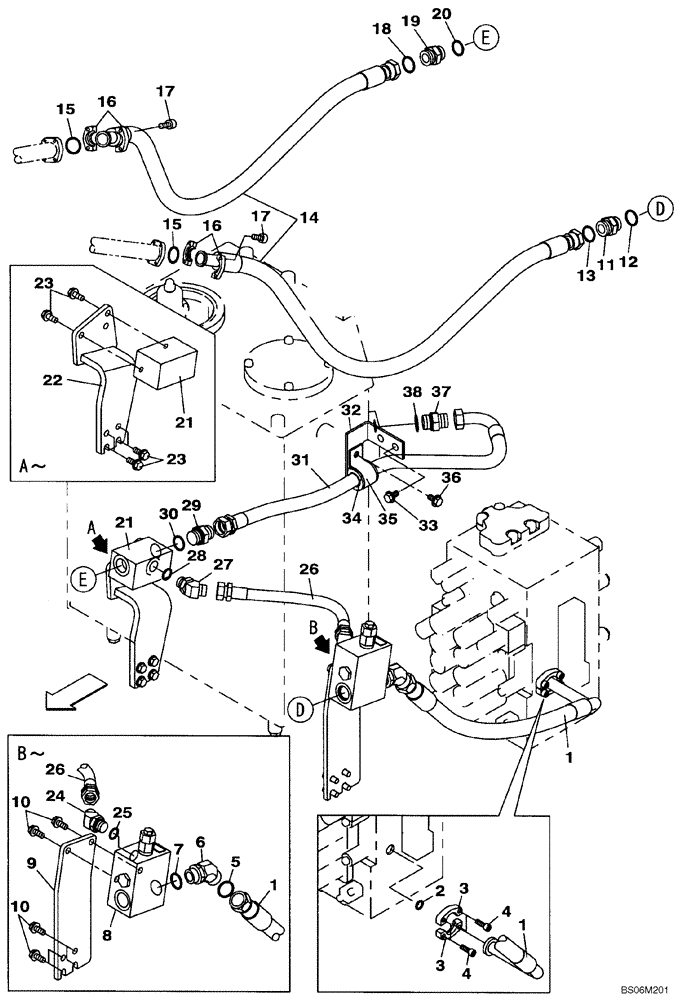

Запчасти Case CX290B (08-28) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

1

KBJ12510

HYDRAULIC HOSE,25.40 mm ID x 1050.00 mm

Replaces KBJ11810

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ11370

ELBOW

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ15050

VALVE PRESSURE RELIE

See Figure 08-76

1шт.

9

KRJ11470

SUPPORT

1шт.

10

166352A1

BOLT

6шт.

11

KHJ1349

ADAPTER

Incl. 12

1шт.

12

154523A1

O-RING

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

14

KBJ11790

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

2шт.

15

164450A1

O-RING

2шт.

16

150124A1

FLANGE

Split

4шт.

17

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

18

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

19

KHJ1349

ADAPTER

Incl. 20

1шт.

20

154523A1

O-RING

1шт.

21

KRJ16400

MANIFOLD VALVE

1шт.

22

KRJ16050

SUPPORT

1шт.

23

166352A1

BOLT

6шт.

24

157586A1

ELBOW

Incl. 25

1шт.

25

154503A1

O-RING

1шт.

26

KBJ13790

HYDRAULIC HOSE,740.00 mm

Replaces KBJ11820

1шт.

27

157586A1

ELBOW

Incl. 28

1шт.

28

154503A1

O-RING

1шт.

29

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 30

1шт.

30

154523A1

O-RING

1шт.

31

KBJ11830

HYDRAULIC HOSE,25.40 mm ID x 1220.00 mm

1шт.

32

KBJ11850

BRACKET

1шт.

33

166352A1

BOLT

2шт.

34

KHJ2680

COLLAR CLAMP

1шт.

35

KBJ11860

SUPPORT

1шт.

36

166352A1

BOLT

1шт.

37

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 38

1шт.

38

154523A1

O-RING

1шт.
