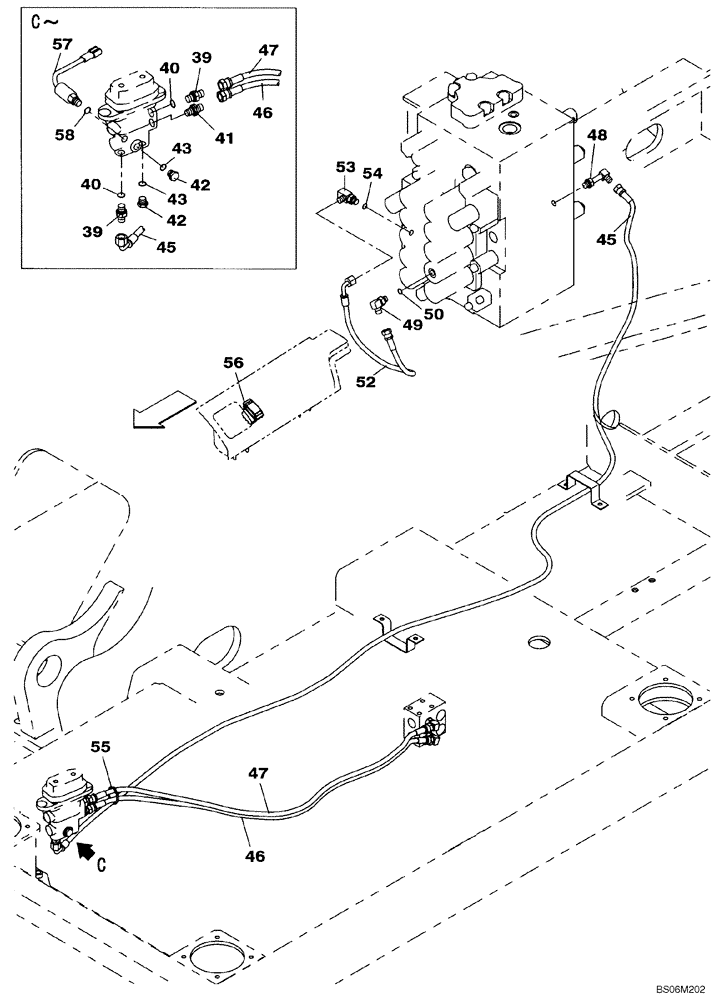

Запчасти Case CX290B (08-27) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

39

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 40

2шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

161841A1

HYD CONNECTOR

1шт.

42

159002A1

PLUG

Incl. 43

2шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

KHJ13660

HYDRAULIC HOSE

3300 mm (129-15/16 in)

1шт.

46

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

47

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

48

KHJ1178

ELBOW

1шт.

49

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 50

1шт.

50

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

KHJ2309

HOSE

550 mm (21-5/8 in)

1шт.

53

KHJ2773

TEE

Incl. 54

1шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

150496A1

MOUNTING CLIP

1шт.

56

KHR14060

SWITCH,Breaker

1шт.

57

KHR10820

PRESSURE SWITCH

Incl. 58

1шт.

58

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
