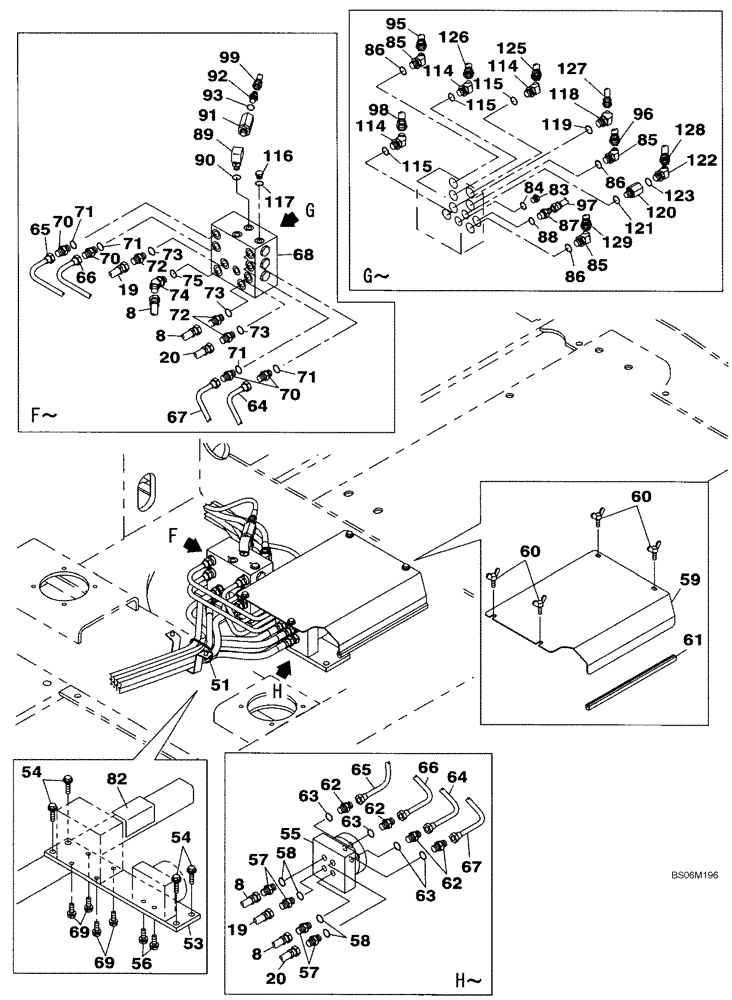

Запчасти Case CX290B (08-21) - PILOT CONTROL LINES, PARTITION - TWO WAY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
8
159211A1
HYDRAULIC HOSE
2000 mm (78-3/4 in)
4шт.
19
159217A1
HYDRAULIC HOSE
1850 mm (72-7/8 in)
2шт.
20
KRJ4381
HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm
2шт.
51
150496A1
MOUNTING CLIP
1шт.
53
KHJ13750
SUPPORT
1шт.
54
166352A1
BOLT
4шт.
55
KHJ12080
CONTROL BLOCK
Component Parts Not Available At Time Of Printing
1шт.
56
166052A1
BOLT
2шт.
57
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 58
4шт.
58
154475A1
O-RING
1шт.
59
KRJ12530
COVER
1шт.
60
KHN17030
SPECIAL BOLT
; Replaces BHN0292
4шт.
61
KRN11120
SEAL PROTECTION
1шт.
62
KHJ1821
NIPPLE, LUBE
NIPPLE Incl. 63
4шт.
63
154475A1
O-RING
1шт.
64
KHJ15390
HYD TUBE,6.6 mm ID x 8 mm OD
1шт.
65
KHJ15400
HYD TUBE,6.6 mm ID x 8 mm OD
1шт.
66
KHJ15410
HYD TUBE,6.6 mm ID x 8 mm OD
1шт.
67
KHJ15420
HYD TUBE,6.6 mm ID x 8 mm OD
1шт.
68
KRJ10351
VALVE SECTION
VALVE SECTION, Replaces KRJ10350, Detail of Valve not available at time of printing.
1шт.
69
166347A1
BOLT,Sems, M10 x 30mm
4шт.
70
KHJ1821
NIPPLE, LUBE
NIPPLE Incl. 71
4шт.
71
154475A1
O-RING
1шт.
72
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 73
3шт.
73
154475A1
O-RING
1шт.
74
157584A1
ELBOW
Incl. 75
1шт.
75
154475A1
O-RING
1шт.
82
KRJ11780
RUBBER PAD
1шт.
83
159002A1
PLUG
Incl. 84
1шт.
84
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
85
157584A1
ELBOW
Incl. 86
3шт.
86
154475A1
O-RING
1шт.
87
153378A1
ADAPTER
Incl. 88
1шт.
88
154475A1
O-RING
1шт.
89
KHJ0719
ELBOW
Incl. 90
1шт.
90
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
91
KHJ10790
FILTER SCREEN
1шт.
92
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 93
1шт.
93
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
95
KHJ2308
HOSE
2150 mm (84-5/8 in)
1шт.
96
KHJ14110
HYDRAULIC HOSE
2150 mm (84-5/8 in)
1шт.
97
KHJ11020
HYDRAULIC HOSE
2050mm (80-11/16 in)
1шт.
98
KHJ2341
HOSE
2200 mm (86-5/8 in)
1шт.
99
KHJ2344
HOSE
2500 mm (98-7/16 in)
1шт.
114
157584A1
ELBOW
Incl. 115
3шт.
115
154475A1
O-RING
1шт.
116
159002A1
PLUG
Incl. 117
1шт.
117
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
118
KHJ1445
ELBOW
Incl. 119
1шт.
119
154475A1
O-RING
1шт.
120
KHJ1584
UNION
Incl. 121
1шт.
121
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
122
157584A1
ELBOW
Incl. 123
1шт.
123
154475A1
O-RING
1шт.
125
KHJ2106
HOSE
1600 mm (63 in)
1шт.
126
KHJ2438
HOSE
1650 mm (65 in)
1шт.
127
KHJ14250
HYDRAULIC HOSE
1700 mm (67 in)
1шт.
128
KHJ2058
HOSE
1550 mm (61 in)
1шт.
129
KHJ13690
HYDRAULIC HOSE
1750 mm (68-7/8 in)
1шт.
Выбрано товаров: 59
