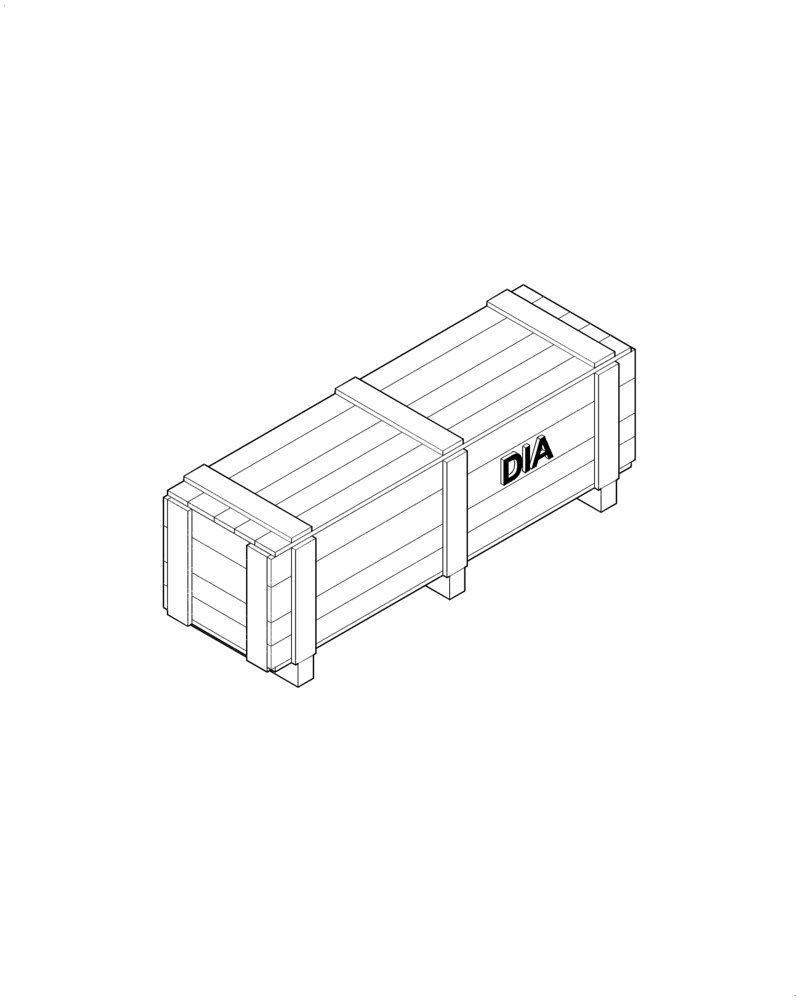

Запчасти Case CX290B (00-002[00]) - DIA KIT, ADDITIONAL PRODUCTS (00) - PICTORIAL INDEX

.

Attachment Kits

1шт.

.

ATT Reinforce plate (Boom + Arm)

1шт.

1

KG0BP773-00

CONSTRUCTION DIA

2.65m Arm

1шт.

2

KG0BP772-00

CONSTRUCTION DIA

3.18m Arm

1шт.

3

KG0BP774-00

CONSTRUCTION DIA

3.66m Arm

1шт.

.

HD BUCKET LINKAGE

1шт.

4

KG0BP723-00

CONSTRUCTION DIA

HD Bucket Link

1шт.

.

AUX. HYDRAULICS (Single Acting)

1шт.

5

KG0BP801-00

CONSTRUCTION DIA

AUX. Hydraulics (Single Acting) Base/Boom, Pedal

1шт.

6

KG0BP802-00

CONSTRUCTION DIA

AUX. Hydraulics (Single Acting) Base/Boom, Switch

1шт.

7

KG0BP819-00

CONSTRUCTION DIA

2.65m Arm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

8

KG0BP818-00

CONSTRUCTION DIA

3.18m Arm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

9

KG0BP820-00

CONSTRUCTION DIA

3.66mArm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

.

AUX. HYDRAULICS (Multi Function)

1шт.

10

KG0BP803-00

CONSTRUCTION DIA

AUX. Hydraulics (Multi Function) Base/Boom, Pedal

1шт.

11

KG0BP804-00

CONSTRUCTION DIA

AUX. Hydraulics (Multi Function) Base/Boom, Switch

1шт.

12

KG0BP819-00

CONSTRUCTION DIA

2.65m Arm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

13

KG0BP818-00

CONSTRUCTION DIA

3.18m Arm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

14

KG0BP820-00

CONSTRUCTION DIA

3.66m Arm for AUX. Hydraulics (Single Acting or Multi Function)

1шт.

.

AUX. HYDRAULICS (Low Flow)

1шт.

15

KG0BP812-00

CONSTRUCTION DIA

AUX. Hydraulics (Low Flow) Base/Boom, Pedal

1шт.

16

KG0BP813-00

CONSTRUCTION DIA

AUX. Hydraulics (Low Flow) Base/Boom, Switch

1шт.

17

KG0BP822-00

CONSTRUCTION DIA

2.65m Arm for AUX. Hydraulics (Low Flow)

1шт.

18

KG0BP821-00

CONSTRUCTION DIA

3.18m Arm for AUX. Hydraulics (Low Flow)

1шт.

19

KG0BP823-00

CONSTRUCTION DIA

3.66m Arm for AUX. Hydraulics (Low Flow)

1шт.

.

AUX. HYDRAULICS (Thumb)

1шт.

20

KG0BP805-00

CONSTRUCTION DIA

AUX. Hydraulics (THUMB) (Double Acting) Base/Boom, Switch

1шт.

.

Non-Attachment Kits

1шт.

17

KG1RP119-00

CONSTRUCTION DIA

Lever Pattern Change Valve (2way)

1шт.

18

KG0BP770-00

CONSTRUCTION DIA

Pre Cleaner

1шт.

19

KG0RR594-00

CONSTRUCTION DIA

Refuel Pump

1шт.

20

KG0HN352-00

CONSTRUCTION DIA

Head Guard on Cab (FOPS Level II)

1шт.

21

KG0HN317-00

CONSTRUCTION DIA

Cab Upper Front Screen (Mesh)

1шт.

22

KG0HN316-00

CONSTRUCTION DIA

Cab Lower Front Screen (Mesh)

1шт.

23

KG0HN318-00

CONSTRUCTION DIA

Cab Front Grill (Bar - OPG Level 1)

1шт.

24

KG0HN319-00

CONSTRUCTION DIA

Cab Front Grill (Bar - OPG Level 2)

1шт.

25

KG0HR415-00

CONSTRUCTION DIA

Cab (Std) Lights (2 add)

1шт.

26

KG0HR416-00

CONSTRUCTION DIA

Cab (w/guard) Lights (2 add)

1шт.

27

KG0HP225-00

CONSTRUCTION DIA

Cab Sunvisor

1шт.

28

KG0HN413-00

CONSTRUCTION DIA

Vandal Cover

1шт.

29

KG0BP694-00

CONSTRUCTION DIA

Free Swing

1шт.

30

KG0HP298-00

CONSTRUCTION DIA

Rubber Bumper Guard

1шт.

31

KG0HP301-00

DECAL KIT

French Canadian Warning Labels

1шт.

32

KG0HP302-00

DECAL KIT

French Canadian Warning Labels W/Control Pattern Selector Valve

1шт.
