Запчасти Case CX240BLR (08-031) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

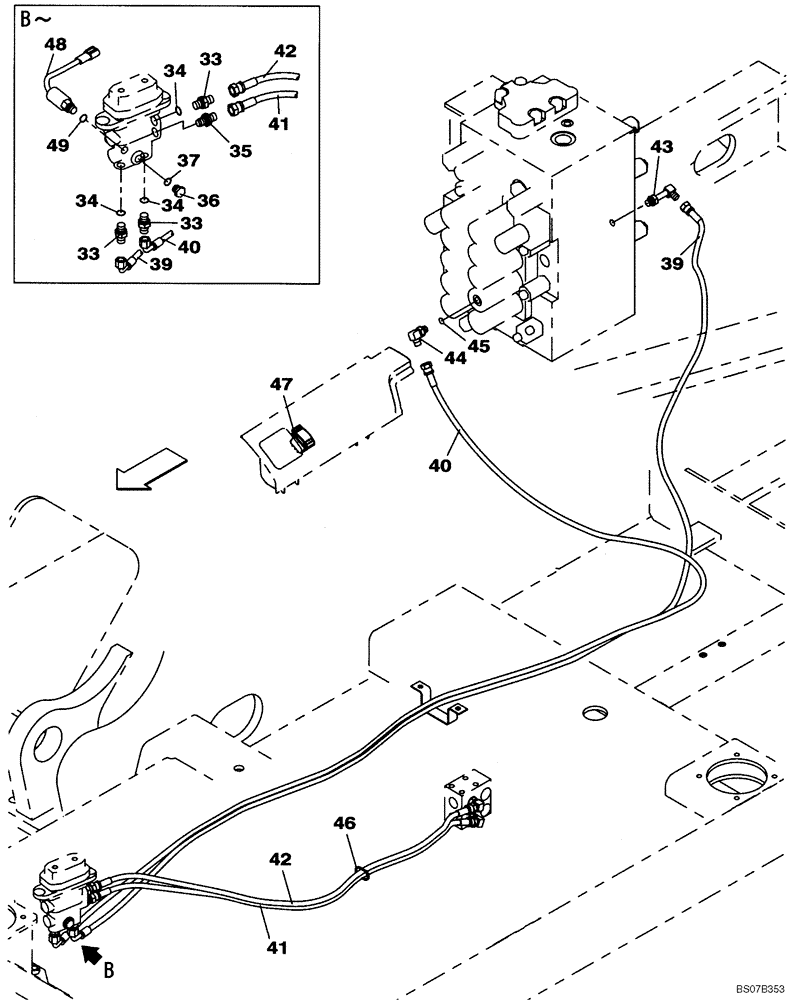

Схема запчастей Case CX240BLR - (08-031) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS
37
43
33
44
33
42
34
41
39
48
39
35
46
45
34
36
42
40
47
33
41
49
40
34

Артикул

Название

Примечание

Количество

33

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 34

3шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

35

161841A1

HYD CONNECTOR

1шт.

36

159002A1

PLUG

Incl. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

39

KHJ2165

HOSE

2900 mm (114-3/16 in)

1шт.

40

KHJ2165

HOSE

2900 mm (114-3/16 in)

1шт.

41

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

42

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

43

KHJ1178

ELBOW

1шт.

44

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 45

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

150496A1

MOUNTING CLIP

1шт.

47

KHR15020

LIMIT SWITCH,Double-acting

1шт.

48

KHR10820

PRESSURE SWITCH

Incl. 49

1шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

Выбрано товаров: 16
