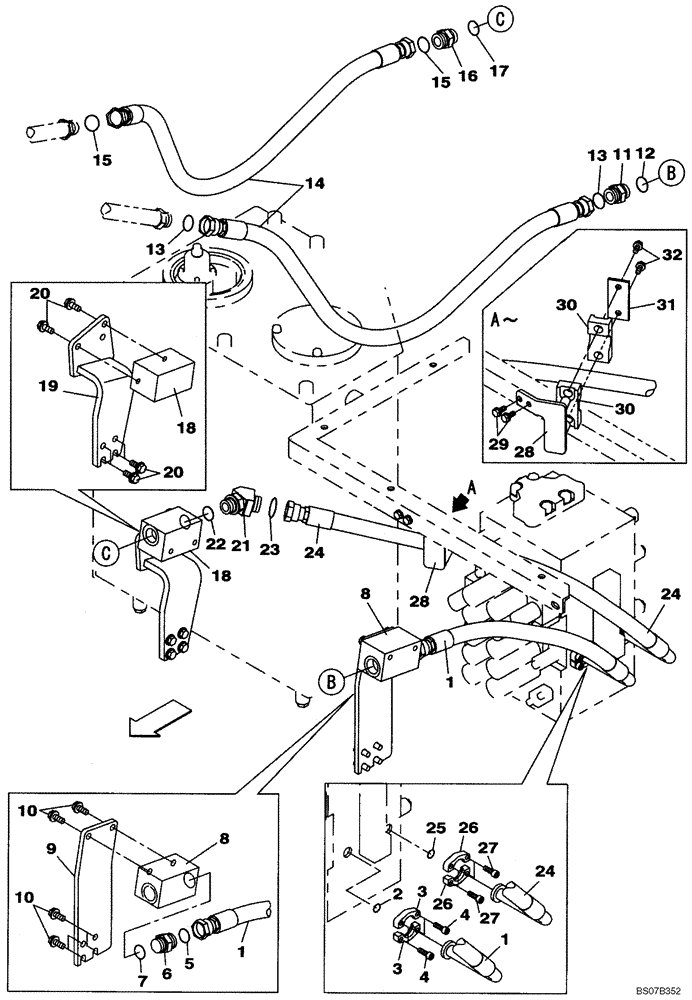

Запчасти Case CX240BLR (08-030) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

1

KBJ10550

HYDRAULIC HOSE,25.40 mm ID x 890.00 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ1349

ADAPTER

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KRJ12170

MANIFOLD VALVE

1шт.

9

KRJ11470

SUPPORT

1шт.

10

166352A1

BOLT

6шт.

11

KHJ1349

ADAPTER

Incl. 12

1шт.

12

154523A1

O-RING

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KRJ11510

HYDRAULIC HOSE,25.40 mm ID x 1360.00 mm

2шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

16

KHJ1349

ADAPTER

Incl. 17

1шт.

17

154523A1

O-RING

1шт.

18

KRJ12170

MANIFOLD VALVE

1шт.

19

KRJ16050

SUPPORT

1шт.

20

166352A1

BOLT

6шт.

21

KHJ11370

ELBOW

Incl. 22

1шт.

22

154523A1

O-RING

1шт.

23

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

24

KBJ10540

HYDRAULIC HOSE,25.40 mm ID x 1340.00 mm

1шт.

25

155211A1

O-RING

1шт.

26

153459A1

FLANGE

Split

2шт.

27

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

28

KRJ16060

SUPPORT

1шт.

29

166052A1

BOLT

2шт.

30

KRJ11450

HOSE CLIP

2шт.

31

KRJ10800

PLATE

1шт.

32

166052A1

BOLT

2шт.
