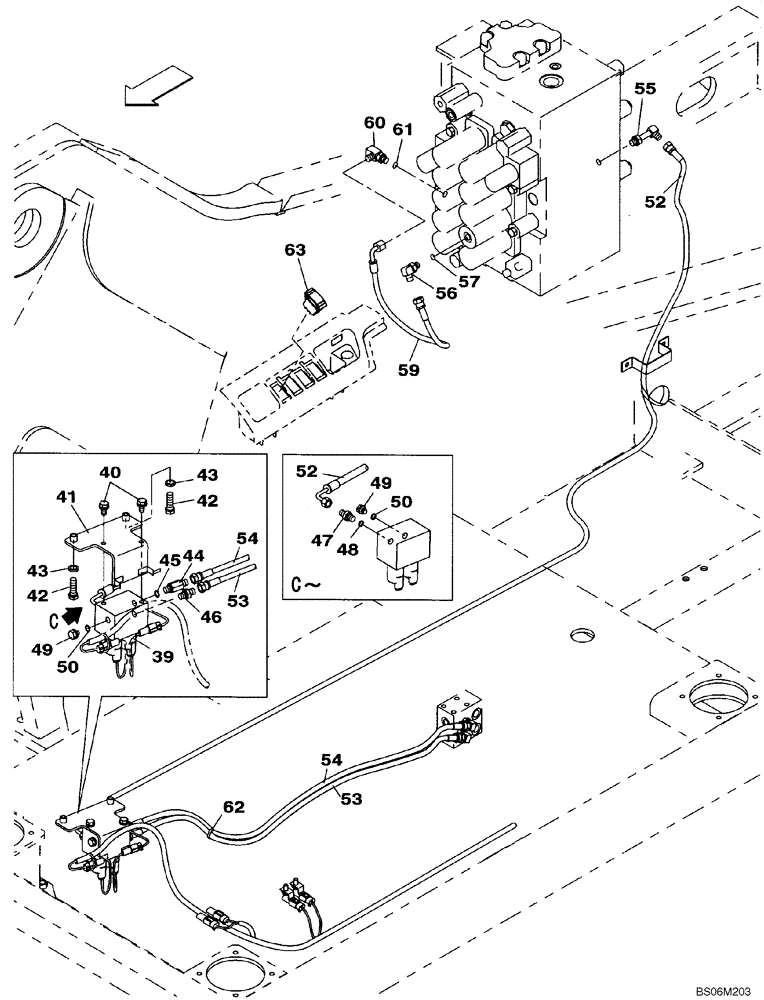

Запчасти Case CX240BLR (08-029) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

39

KHJ14000

VALVE SECTION

See Figure 08-79

1шт.

40

166351A1

BOLT,Sems, M10 x 20mm

2шт.

41

KHJ14680

SUPPORT

1шт.

42

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

43

150409A1

WASHER

2шт.

44

162554A1

FITTING

Incl. 45

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

161841A1

HYD CONNECTOR

1шт.

47

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 48

1шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

159002A1

PLUG

Incl. 50

2шт.

50

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

KHJ13660

HYDRAULIC HOSE

3300 mm (129-15/16 in)

1шт.

53

KHJ15180

HYDRAULIC HOSE

950 mm (37-3/8 in)

1шт.

54

KHJ2049

HOSE

900 mm (35-7/16 in)

1шт.

55

KHJ1178

ELBOW

1шт.

56

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 57

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

KHJ2309

HOSE

550 mm (21-5/8 in)

1шт.

60

KHJ2773

TEE

Incl. 61

1шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

150496A1

MOUNTING CLIP

1шт.

63

KHR14060

SWITCH,Breaker

1шт.
