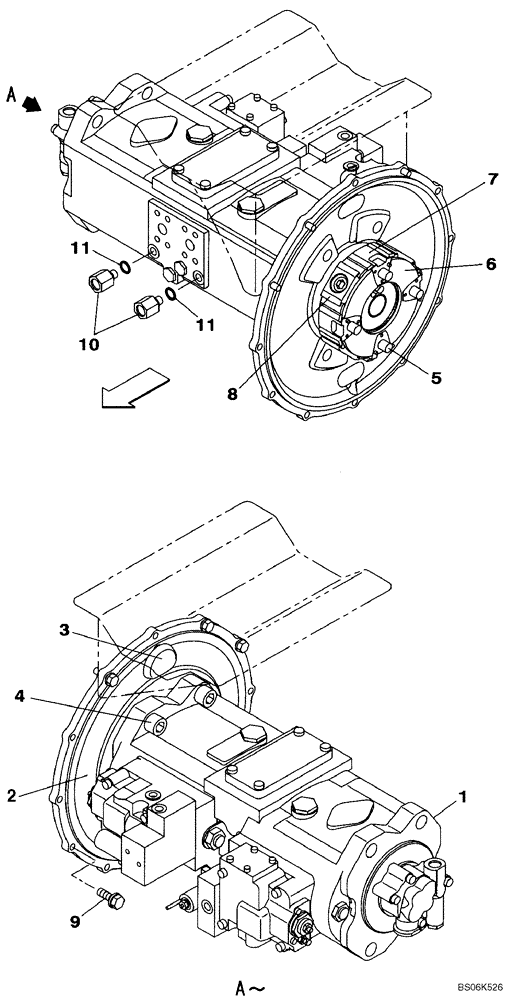

Запчасти Case CX240BLR (08-003) - PUMP ASSY, HYDRAULIC - STANDARD - COUPLING (08) - HYDRAULICS

1

KBJ10510

HYDRAULIC PUMP

See Figure 08-091 - 08-095

1шт.

1

KBJ10510R

REMAN-HYD PUMP

CX240BLR CRAWLER EXCAVATOR TIER 3 (NA), STANDARD - COUPLING (3/07-)

1шт.

1

KBJ10510C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166370A1

FLANGE

Flange

1шт.

3

KHJ2656

GROMMET

2шт.

4

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

5

KRJ10340

COUPLING

Incl. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Element

1шт.

7

NSS

NOT SOLD SEPARAT

Insert, Coupling

4шт.

8

NSS

NOT SOLD SEPARAT

Insert, Coupling

1шт.

9

166347A1

BOLT,Sems, M10 x 30mm

9шт.

10

KHJ18180

STUD

Incl. 11, Replaces KHJ11380

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
