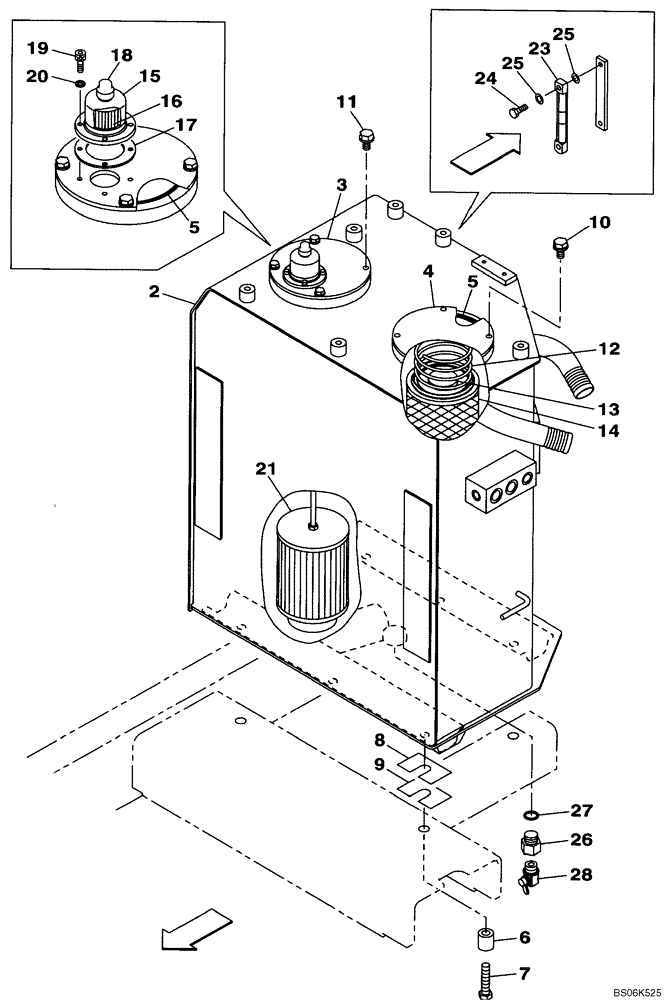

Запчасти Case CX240BLR (08-001[01]) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

KBJ12760

RESERVOIR, HYDRAULIC

Incl. 2 - 5, Until P.I.N N6EAM1324 And N6SAM1333; Replaces KRJ15660

1шт.

2

NSS

NOT SOLD SEPARAT

Tank, Oil

1шт.

3

KRJ15380

COVER

1шт.

4

KSJ3080

COVER

1шт.

5

154837A1

O-RING

2шт.

6

153357A1

SPACER

4шт.

7

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

8

150166A1

SHIM

1шт.

9

150479A1

SHIM

1шт.

10

166351A1

BOLT,Sems, M10 x 20mm

4шт.

11

166347A1

BOLT,Sems, M10 x 30mm

4шт.

12

159701A1

SPRING

1шт.

13

159273A1

VALVE

1шт.

14

KRJ20710

HYDRAULIC OIL FILTER

Replaces KRJ15830

1шт.

15

KHJ1491

BREATHER

Incl. 16 - 18

1шт.

16

159702A1

HYDRAULIC OIL FILTER

1шт.

17

159703A1

GASKET

1шт.

18

KHJ1492

CAP

1шт.

19

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

20

892-11006

LOCK WASHER,M6

4шт.

21

KRJ10590

HYDRAULIC OIL FILTER

1шт.

163560A1

SIGHTGLASS

Incl. 23 - 25

1шт.

23

163561A1

GAUGE

1шт.

24

159492A1

BOLT

2шт.

25

159493A1

SEALING WASHER

SEAL WASHER

4шт.

26

KHJ16920

STUD

Incl. 27

1шт.

27

154503A1

O-RING

1шт.

28

158923A1

DRAIN VALVE

1шт.

29

150847A1

HYD CONNECTOR

Not Illustrated

1шт.
