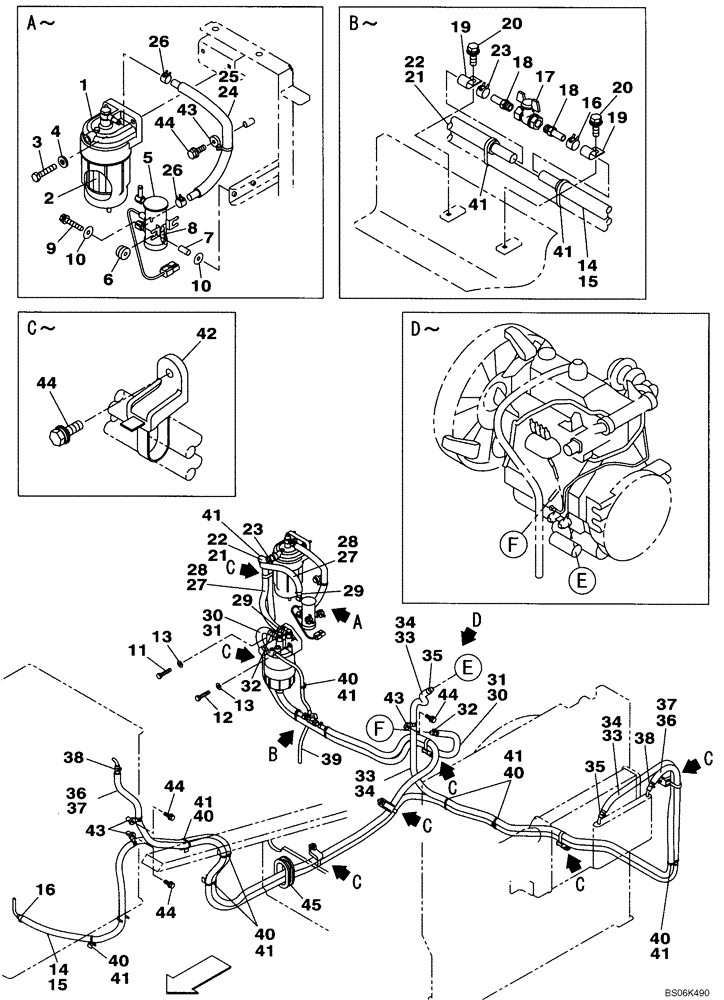

Запчасти Case CX240BLR (03-02) - FUEL LINES (03) - FUEL SYSTEM

1

KHH12020

FILTER ASSY

Incl. 1A - 2C, Replaces KHH10550

1шт.

1a

158678A1

GASKET

Not Illustrated; Replaces KHH10570

4шт.

1b

158676A1

GASKET

Not Illustrated; Replaces KHH10580

1шт.

2

KHH12030

FUEL FILTER

Incl. 2A, 2B, Replaces KHH10590

1шт.

2a

LBQ5245

O-RING

Not Illustrated

1шт.

2b

KHH10600

GASKET

Not Illustrated

1шт.

2c

155467A1

PLUG, DRAIN

Not Illustrated

1шт.

3

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

4

153081A1

WASHER

2шт.

5

KHH11880

FEED PUMP

Incl. 6 - 8; Replaces KHH10460

1шт.

6

KHH10470

GROMMET

2шт.

7

KHH10480

COLLAR

2шт.

8

KHH11890

FILTER SCREEN

Replaces KHH10490

1шт.

8a

KHH11900

GASKET

Not Illustrated

1шт.

9

162057A1

BOLT,Spcl, M6 x 35mm

2шт.

10

150529A1

WASHER

4шт.

11

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

12

102R008Y075R

BOLT

1шт.

13

153081A1

WASHER

3шт.

14

KHH11290

FUEL HOSE

1шт.

15

KHR13940

PLASTIC-RUBBER TUBE

1шт.

16

KHH0405

MOUNTING CLIP

2шт.

17

158923A1

DRAIN VALVE

1шт.

18

157929A1

FITTING

2шт.

19

162148A1

CLIP

2шт.

20

KHJ1215

BOLT,Spcl

2шт.

21

KHH10980

HYDRAULIC HOSE,9.70 mm ID x 1000.00 mm

1шт.

22

KHR13380

PLASTIC-RUBBER TUBE

1шт.

23

KHH0405

MOUNTING CLIP

2шт.

24

KHH11010

HYDRAULIC HOSE,9.70 mm ID x 500.00 mm

1шт.

25

150476A1

PLASTIC-RUBBER TUBE,19.3 mm ID, 23.8 mm OD, 400 mm Length

1шт.

26

KHH0405

MOUNTING CLIP

2шт.

27

KHH11020

HYDRAULIC HOSE,9.70 mm ID x 750.00 mm

1шт.

28

KHR13370

PLASTIC-RUBBER TUBE

1шт.

29

KHH0405

MOUNTING CLIP

2шт.

30

KHH11320

HYDRAULIC HOSE,9.70 mm ID x 1900.00 mm

1шт.

31

KHR3052

PLASTIC-RUBBER TUBE

1шт.

32

KHH0405

MOUNTING CLIP

2шт.

33

KHH11300

FUEL HOSE,9.50 mm ID x 3100.00 mm

1шт.

34

158069A1

PLASTIC-RUBBER TUBE

1шт.

35

KHH0405

MOUNTING CLIP

2шт.

36

KHH11310

FUEL HOSE,9.70 mm ID x 4400.00 mm

1шт.

37

KHR10720

PLASTIC-RUBBER TUBE

1шт.

38

KHH0405

MOUNTING CLIP

2шт.

39

KHH11720

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

1шт.

40

KHR10220

MOUNTING CLIP

8шт.

41

150496A1

MOUNTING CLIP

11шт.

42

KHR2581

CLAMP

7шт.

43

KHR2584

CLAMP

4шт.

44

KHJ1215

BOLT,Spcl

11шт.

45

KRH11970

SEAL

1шт.
