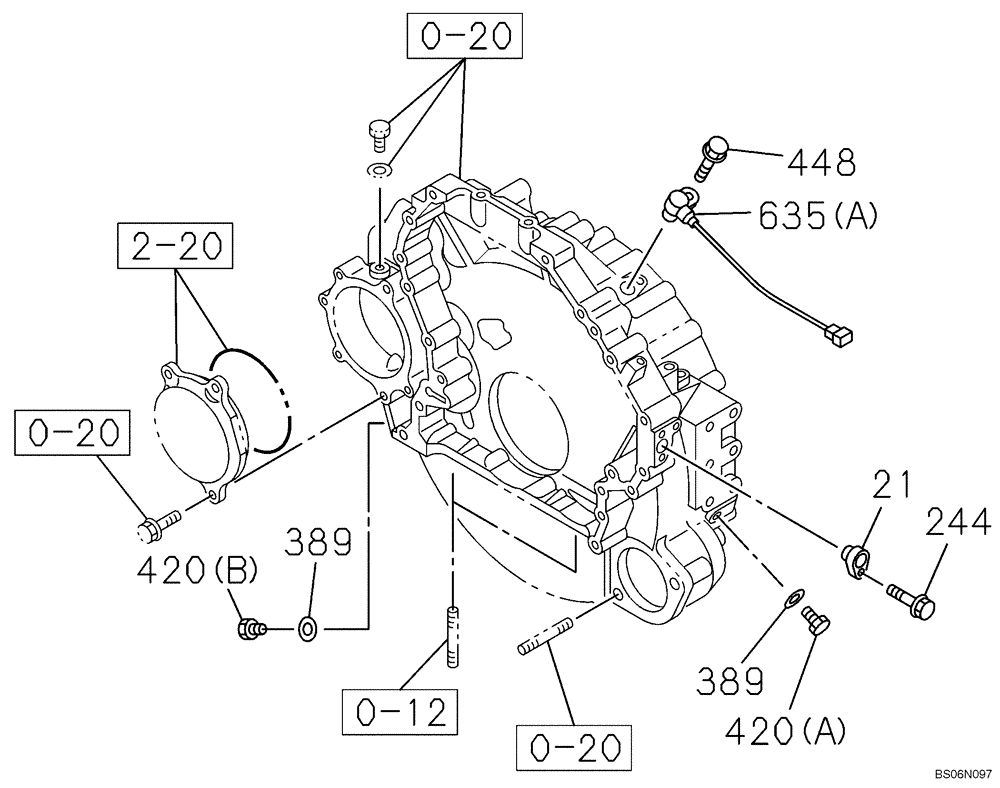

/ / / / / / / / (02-34) - ENGINE FLYWHEEL HOUSING
Запчасти Case CX240BLR (02-34) - ENGINE FLYWHEEL HOUSING (02) - ENGINE
2-20
0-20
0-20
389
420b
0-20
389
244
21
635a
420a
448
0-12
0-12
REF
INSTRUCTION
See Figure 02-11
1шт.
0-20
REF
INSTRUCTION
See Figure 02-17
1шт.
2-20
REF
INSTRUCTION
See Figure 02-33
1шт.
21
72215904
PLUG
1шт.
244
87595938
BOLT
1шт.
389
355158A1
GASKET
2шт.
420a
87597964
PLUG
1шт.
420b
71455254
PLUG
1шт.
448
87595952
BOLT
1шт.
635a
87336454
SENSOR
1шт.
