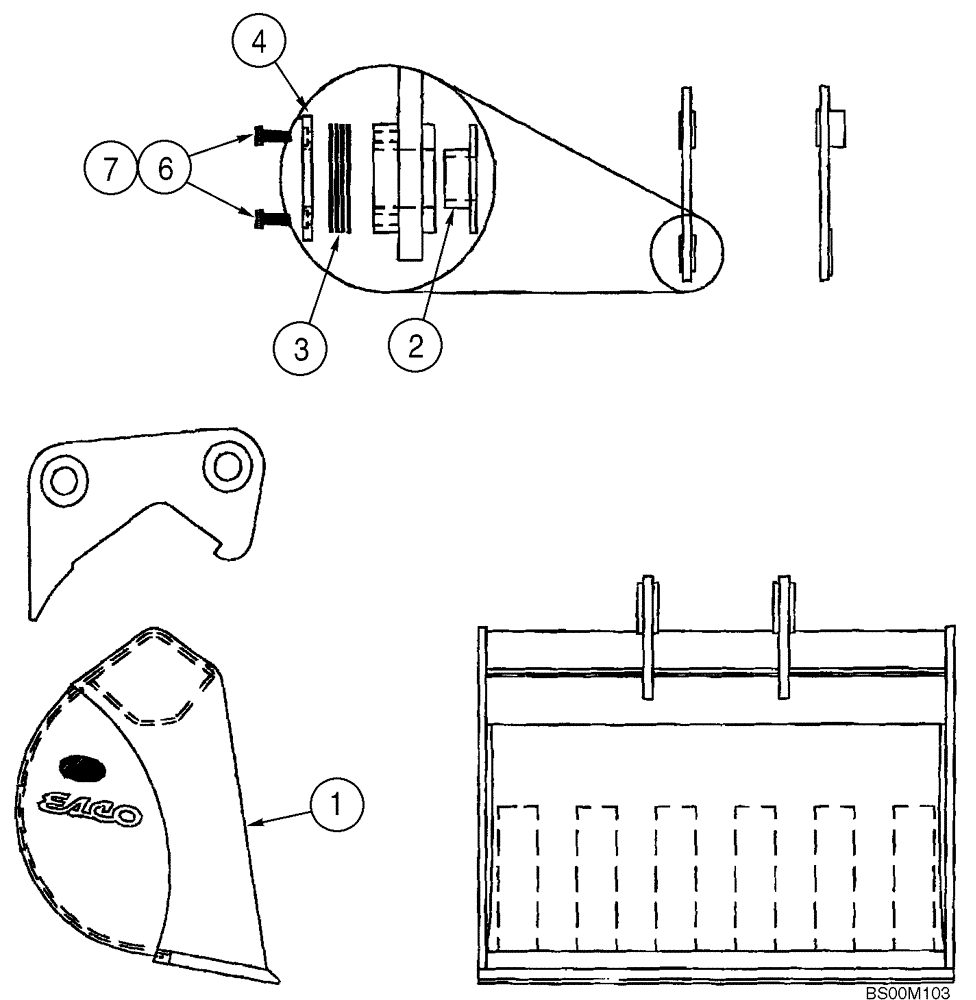

Запчасти Case CX240BLR (09-44) - BUCKETS, ESCO - DITCH CLEANING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Bucket, 0,65 cu m (0,86 cu yd)

1шт.

1

REF

INSTRUCTION

Bucket, 0,73 cu m (0,96 cu yd)

1шт.

2

372025A1

BUSHING

1шт.

3

378626A1

SHIM

6шт.

4

378627A1

PLATE

1шт.

5

378628A1

PIN

Not Illustrated

2шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

378641A1

KIT

Adjustment; Incl. 2 - 7

1шт.
