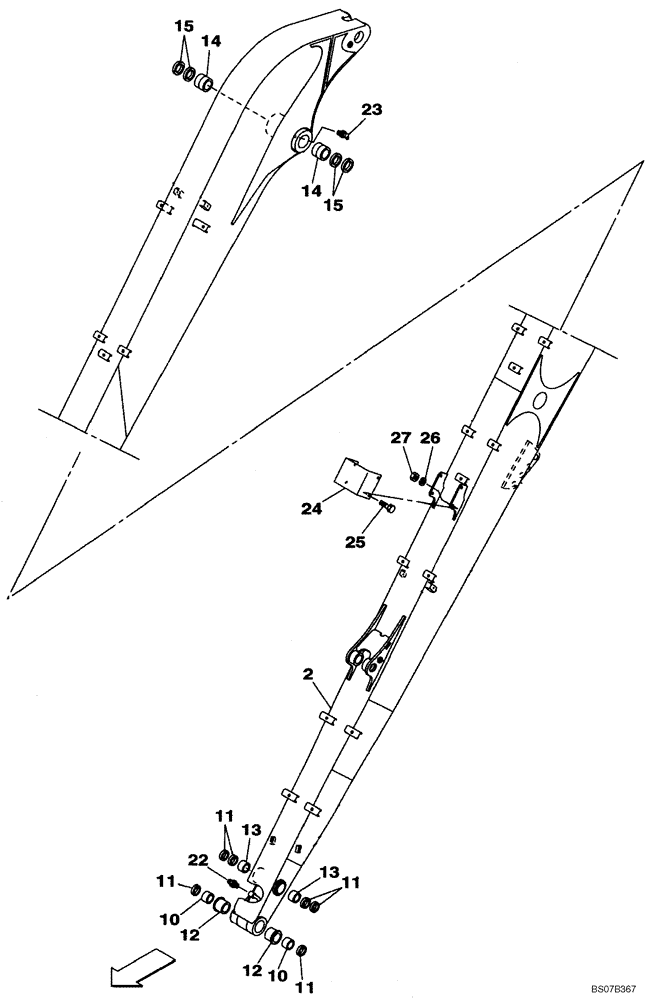

Запчасти Case CX240BLR (09-40) - ARM, EXCAVATOR (09) - CHASSIS/ATTACHMENTS

KBV19090

DIPPER

Incl. 2 - 15, Replaces KBV16900

1шт.

2

NSS

NOT SOLD SEPARAT

Arm

1шт.

10

KNV15910

BUSHING

2шт.

11

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

6шт.

12

KNV1130

BUSHING

2шт.

13

KNV1138

BUSHING,65mm ID x 80mm OD x 50mm L

2шт.

14

KBV1360

SELF LUB RING

2шт.

15

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

4шт.

22

153630A1

LUBE NIPPLE

1шт.

23

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.

24

164395A1

COVER

1шт.

25

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

26

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

27

829-1416

NUT,M16, Cl 10

4шт.
