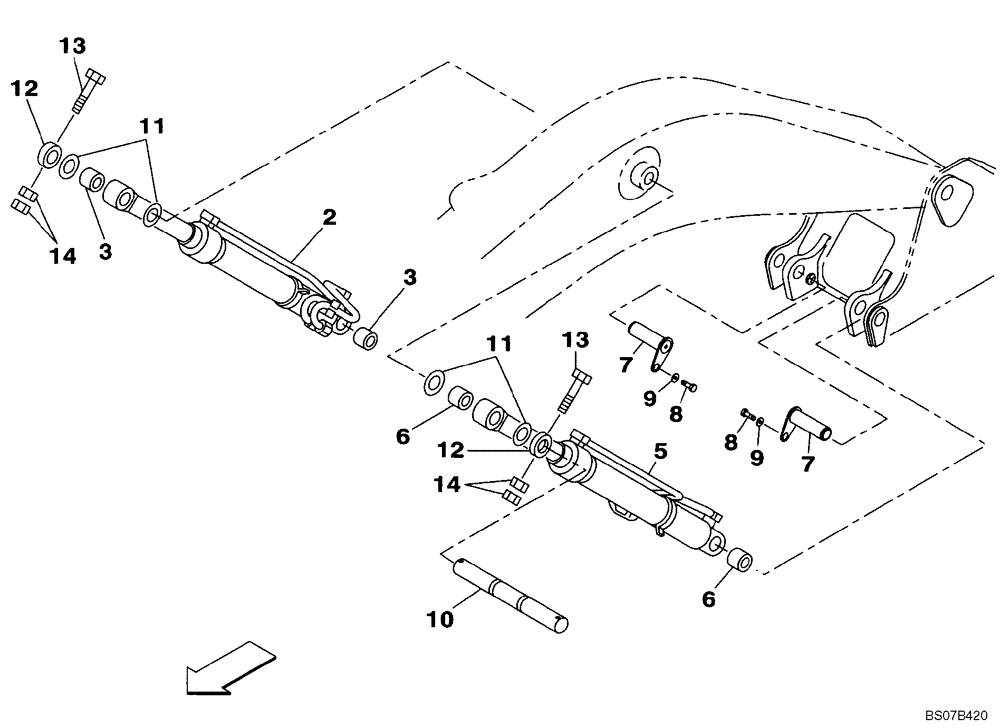

Запчасти Case CX240BLR (09-39) - BOOM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

2

KBV10980

HYDRAULIC CYLINDER

Right Hand; See Figure 08-087

1шт.

2

KBV25220R

REMAN-HYD CYLINDER

CX240BLR CRAWLER EXCAVATOR TIER 3 (NA), BOOM CYLINDER - MOUNTING, RIGHT HAND (3/07-), Reman for New PN KBV10980

1шт.

2

KBV25220C

CORE-HYD CYLINDER

Return Number

1шт.

3

KBV1363

SELF LUB RING

2шт.

5

KBV11000

HYDRAULIC CYLINDER

Left Hand; See Figure 08-088

1шт.

5

KBV25230R

REMAN-HYD CYLINDER

CX240BLR CRAWLER EXCAVATOR TIER 3 (NA), MOUNTING, LEFT HAND (3/07-), Reman for New PN KBV11000

1шт.

5

KBV25230C

CORE-HYD CYLINDER

Return Number

1шт.

6

KBV1363

SELF LUB RING

2шт.

7

KBV11570

PIN

2шт.

8

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

9

157141A1

WASHER

2шт.

10

KBV11560

PIN

1шт.

11

159458A1

ADJUSTING PLATE

4шт.

12

159440A1

COLLAR

2шт.

13

514-1218

BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9

2шт.

14

829-11420

NUT,M20 x 1.5, Cl 10

4шт.
