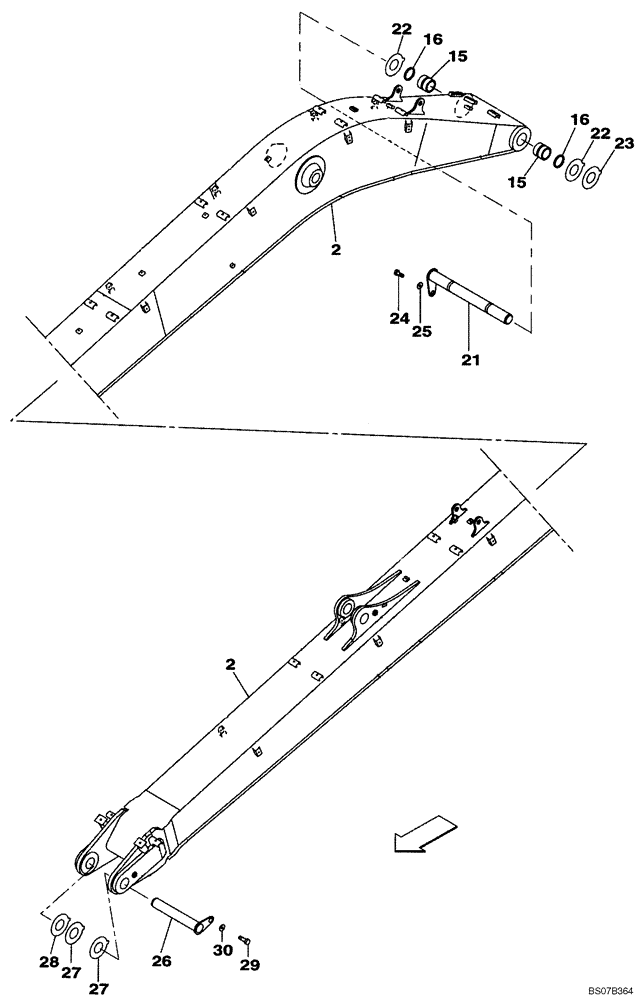

Запчасти Case CX240BLR (09-37) - BOOM (09) - CHASSIS/ATTACHMENTS

KBV16860

BOOM

Incl. 2, 15, 16

1шт.

2

NSS

NOT SOLD SEPARAT

Boom

1шт.

15

KBV1360

SELF LUB RING

2шт.

16

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

2шт.

21

KBV11580

PIN

1шт.

22

KBV11190

SHIM,1mm Thk

2шт.

23

KBV11200

SHIM,2mm Thk

1шт.

24

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

25

157141A1

WASHER

1шт.

26

KBV14380

PIN

1шт.

27

KBV11190

SHIM,1mm Thk

2шт.

28

KBV11200

SHIM,2mm Thk

1шт.

29

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

30

157141A1

WASHER

1шт.
