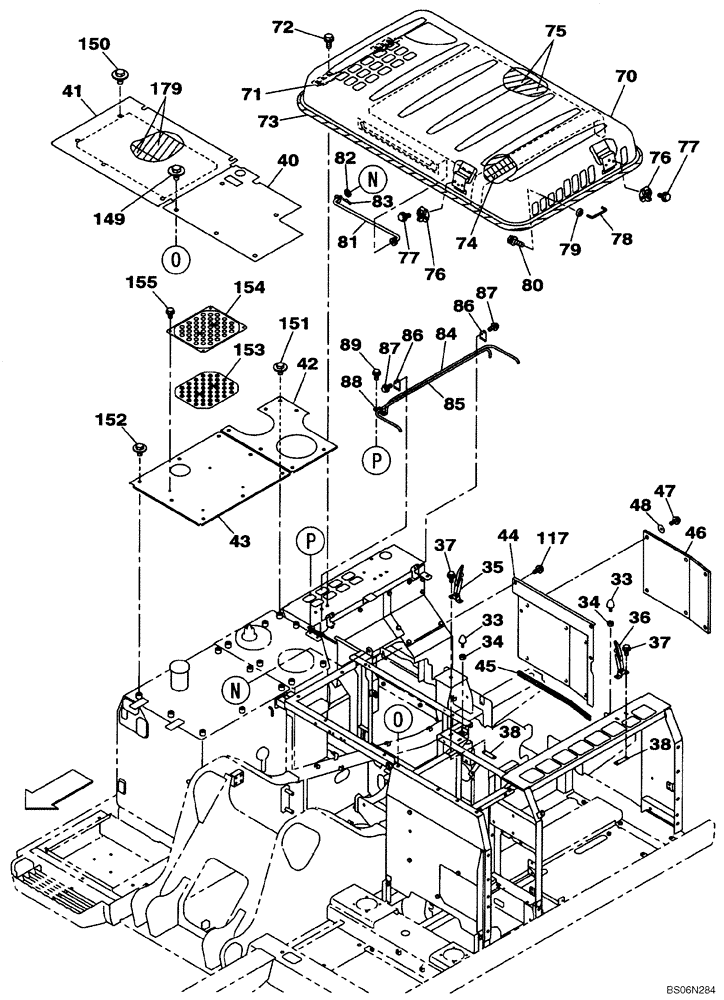

Запчасти Case CX240BLR (09-07) - HOOD, ENGINE - INSULATION (09) - CHASSIS/ATTACHMENTS

33

151108A1

STOP

2шт.

34

KBH0446

NUT

2шт.

35

152423A1

LATCH

1шт.

36

150790A1

LATCH

1шт.

37

166350A1

BOLT

4шт.

38

KHN16780

PLATE

2шт.

40

KRN14640G1

COVER

1шт.

41

KRN12670G1

COVER

1шт.

42

KRN12680G1

COVER

1шт.

43

KRN12690G1

COVER

1шт.

44

KRN14601

COVER

COVER, Replaces KRN14600

1шт.

45

KAN3478

SEALING STRIP

1шт.

46

KRN14610

COVER

1шт.

47

166350A1

BOLT

6шт.

48

163356A1

WASHER

6шт.

70

KBN11430G1

ENGINE HOOD

Incl. 71

1шт.

71

KHN2143

HINGE

2шт.

72

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

73

KTN1312

PACKING

1шт.

74

KBN11480

SEAL

1шт.

75

KRN14240

NOISE PROTECTION

2шт.

76

150785A1

STOP LOCK

2шт.

77

166350A1

BOLT

4шт.

78

KHN2537

HANDLE

1шт.

79

KHN2538

WASHER

2шт.

80

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

81

KRN12570

ROD

1шт.

82

157548A1

WASHER

1шт.

83

KHN2373

PIN, SPLIT (COTTER)

PIN, COTTER

1шт.

84

KBN11460

TORSION BAR

1шт.

85

KBN11470

TORSION BAR

1шт.

86

KRN12550

SUPPORT

2шт.

87

166350A1

BOLT

4шт.

88

KRN12560

SUPPORT

1шт.

89

166350A1

BOLT

2шт.

117

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

149

KHN12020

BOLT,Spcl

5шт.

150

KHN12020

BOLT,Spcl

6шт.

151

KHN12020

BOLT,Spcl

7шт.

152

KHN12020

BOLT,Spcl

8шт.

153

KHN10940

RUBBER PAD

1шт.

154

KHN13510B1

COVER

1шт.

155

KHN13540

BOLT,Spcl

4шт.

179

KRN14230

NOISE PROTECTION

2шт.
