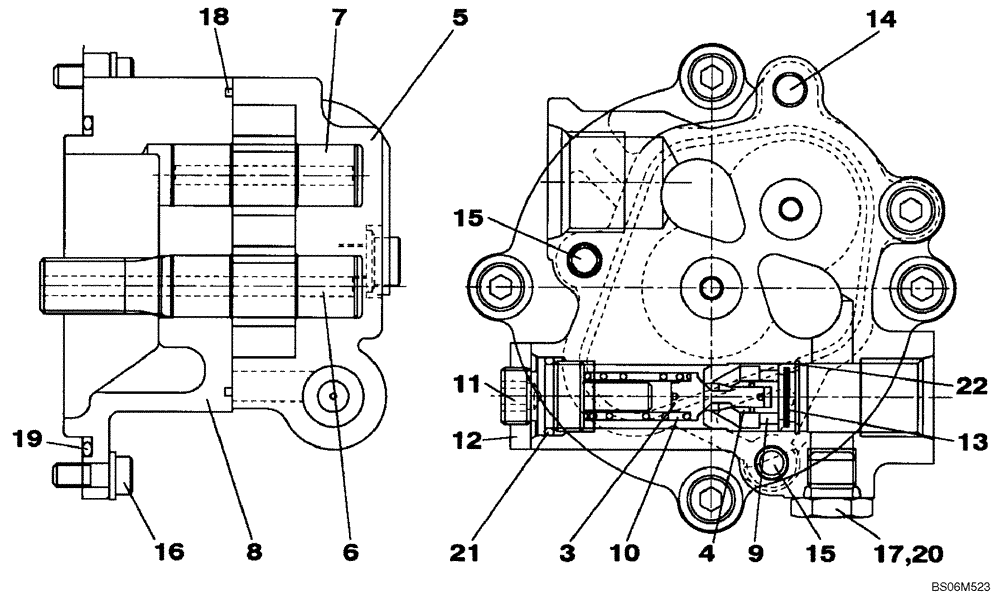

Запчасти Case CX240BLR (08-092) - KBJ10510 PUMP ASSY, HYDRAULIC - GEAR PUMP ASSY (08) - HYDRAULICS

KBJ10510

HYDRAULIC PUMP

Includes All Parts On Figures 08-091 - 08-095

1шт.

KBJ10510R

REMAN-HYD PUMP

CX240BLR CRAWLER EXCAVATOR TIER 3 (NA), GEAR PUMP ASSY (3/07-)

1шт.

KBJ10510C

CORE-HYDRAULIC PUMP

Return Number

1шт.

LJ014510

HYDRAULIC PUMP

Incl. 3 - 22

1шт.

LJ014510R

REMAN-HYD PUMP

CX240BLR CRAWLER EXCAVATOR TIER 3 (NA), GEAR PUMP ASSY (3/07-)

1шт.

LJ014510C

CORE-HYDRAULIC PUMP

Return Number

1шт.

LC002870

GEAR

Incl. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Poppet

1шт.

4

NSS

NOT SOLD SEPARAT

Seat

1шт.

5

NSS

NOT SOLD SEPARAT

Case, Gear

1шт.

6

NSS

NOT SOLD SEPARAT

Gear

1шт.

7

NSS

NOT SOLD SEPARAT

Gear

1шт.

8

NSS

NOT SOLD SEPARAT

Case

1шт.

9

LE01175

RING

1шт.

10

LG00536

SPRING

1шт.

11

LF00043

ADJUSTER

1шт.

12

163662A1

LOCK NUT

1шт.

13

163663A1

FILTER

1шт.

14

163664A1

FLANGE BOLT,Hex Skt, M8 x 50mm

2шт.

15

163665A1

FLANGE BOLT,Hex Skt, M8 x 60mm

2шт.

16

163666A1

FLANGE BOLT

4шт.

17

155496A1

PLUG

1шт.

18

163667A1

SEALING RING

1шт.

19

LE013510

O-RING

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

154483A1

O-RING

1шт.

22

163668A1

RING, LOCKING

RING, LOCK

1шт.
