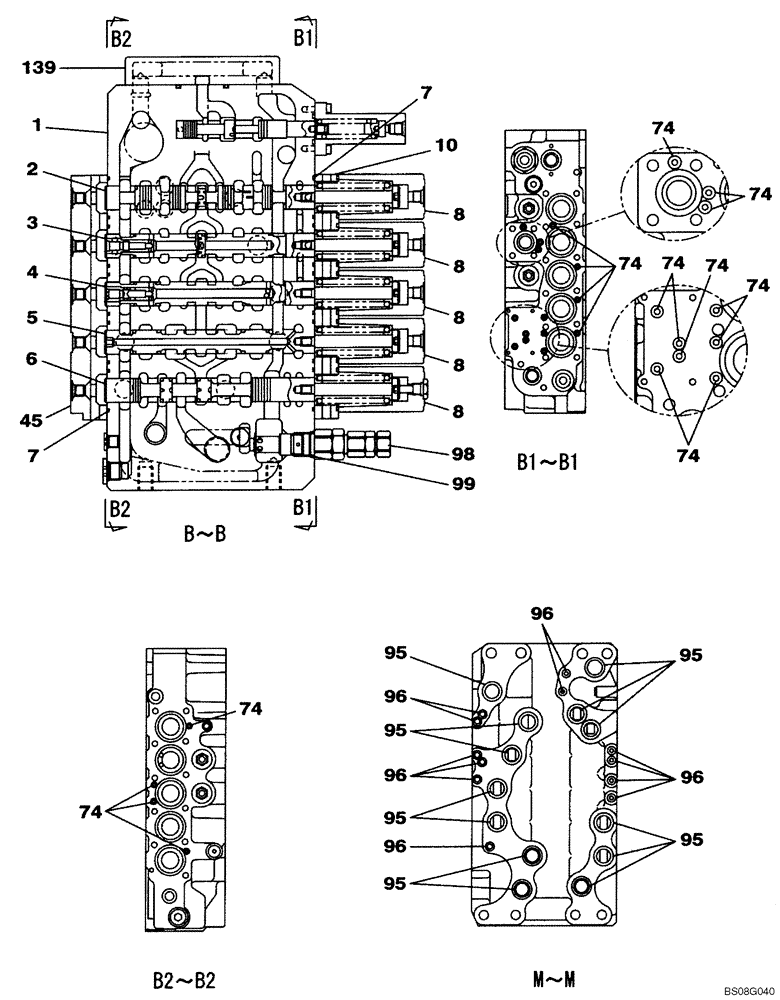

Запчасти Case CX240BLR (08-063) - KBJ12711 VALVE ASSY - CONTROL (08) - HYDRAULICS

KBJ12711

CONTROL VALVE

Includes All Parts On Figures 08-061 - 08-070, Replaces KBJ12710

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Valve

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Spool

1шт.

5

NSS

NOT SOLD SEPARAT

Spool

2шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

154589A1

O-RING

10шт.

8

LR015210

CAP

5шт.

10

LR015230

PLATE

1шт.

45

LR015260

PLATE

1шт.

74

154447A1

O-RING

18шт.

95

LE014890

O-RING,3.53mm Thk x 25.7mm ID, Cl 6

14шт.

96

154463A1

O-RING

12шт.

98

LJ015010

VALVE PRESSURE RELIE

Incl. 99

1шт.

99

155223A1

O-RING

Not Shown

1шт.

KRJ10330

CONTROL VALVE

Includes Ref 109 & 110

1шт.

109

LJ014760

HYD VALVE SECTION

1шт.

110

LJ014770

CONNECTING BLOCK

1шт.

139

LT001660

END PLATE

11шт.
