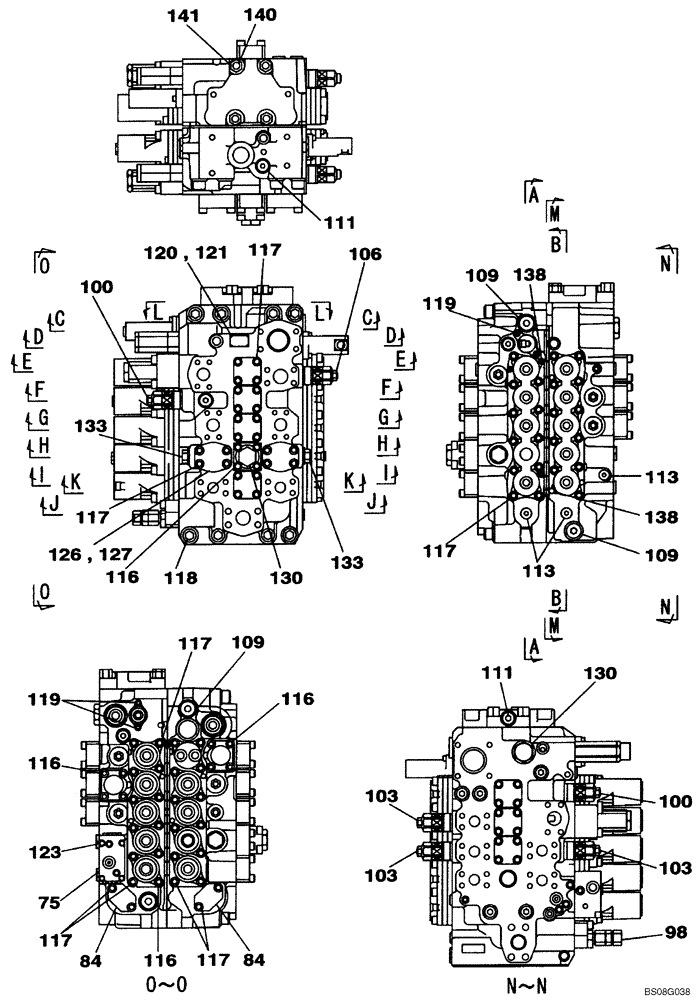

Запчасти Case CX240BLR (08-061) - KBJ12711 VALVE ASSY - CONTROL (08) - HYDRAULICS

KBJ12711

CONTROL VALVE

Includes All Parts On Figures 08-061 - 08-070, Replaces KBJ12710

1шт.

75

LR015280

BODY

1шт.

84

LH00250

CAP

2шт.

98

LJ015010

VALVE PRESSURE RELIE

See Figure 08-066

1шт.

100

LJ014730

VALVE PRESSURE RELIE

See Figure 08-066

1шт.

103

LJ015020

VALVE PRESSURE RELIE

See Figure 08-066

3шт.

106

LJ01193

VALVE, PRESSURE RELI

EF Incl. 107

1шт.

107

155223A1

O-RING

Not Shown

1шт.

109

163370A1

PLUG

Incl. 110

3шт.

110

154487A1

O-RING

Not Shown

1шт.

111

163369A1

PLUG

Incl. 112

10шт.

112

154475A1

O-RING

Not Shown

1шт.

113

163972A1

PLUG

Incl. 114, 115

3шт.

114

LK00328

PLUG

Not Shown

1шт.

115

154467A1

O-RING,10.8mm ID x 2.4mm Width

Not Shown

1шт.

116

108R010Z055B

BOLT

32шт.

117

108R010Z040B

BOLT

M10 x 40

66шт.

118

108R016Z130B

BOLT

M16 x 130

8шт.

119

LUC0118

BOLT,Hex Skt Hd

4шт.

120

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

121

NSS

NOT SOLD SEPARAT

Screw

2шт.

123

LA011120

BOLT,Hex Skt Hd

4шт.

126

LR00579

PLUG

2шт.

127

168198A1

O-RING

2шт.

130

LK00302

PLUG

Incl. 131, 132

2шт.

131

165836A1

PLUG

Not Shown

1шт.

132

154503A1

O-RING

Not Shown

1шт.

133

165839A1

PLUG

See Figure 08-066

2шт.

138

LA011130

BOLT,Hex Skt Hd

2шт.

140

LB011890

TIE-ROD

4шт.

141

LUC0094

SPECIAL NUT

4шт.
