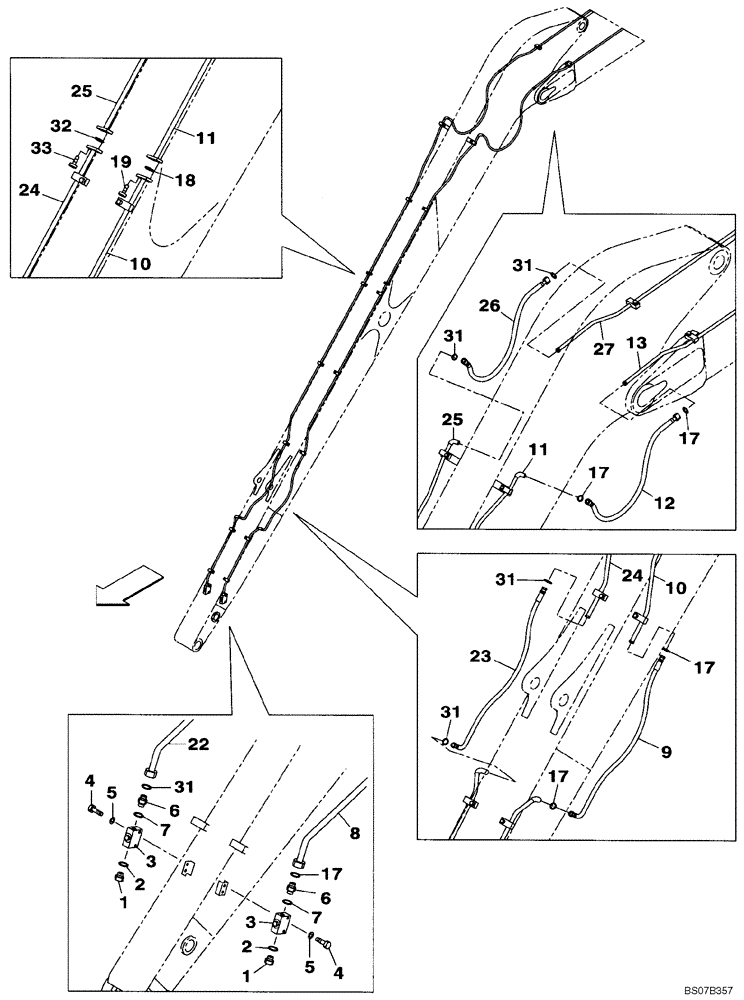

Запчасти Case CX240BLR (08-045) - OPTION LINE (BAR BASE) (08) - HYDRAULICS

1

162659A1

PLUG

Incl. 2

2шт.

2

154523A1

O-RING

1шт.

3

KHV10430

SHUT-OFF VALVE

2шт.

4

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1349

ADAPTER

Incl. 7

2шт.

7

154523A1

O-RING

1шт.

8

KBV17040

HYD TUBE

1шт.

9

KSV1563

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

1шт.

10

KBV17020

HYD TUBE

1шт.

11

KBV17000

HYD TUBE

1шт.

12

KBV17160

HYDRAULIC HOSE

1шт.

13

KBV16380

HYD TUBE

1шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

5шт.

18

154548A1

O-RING

1шт.

19

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

16

KBV16750

HYDRAULIC HOSE,25.40 mm ID x 2100.00 mm

1шт.

17

KBV15590

HYD TUBE

1шт.

18

KBV15610

HYD TUBE

1шт.

19

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

22

KBV17050

HYD TUBE

1шт.

23

KSV1563

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

1шт.

24

KBV17030

HYD TUBE

1шт.

25

KBV17010

HYD TUBE

1шт.

26

KBV17160

HYDRAULIC HOSE

1шт.

27

KBV16370

HYD TUBE

1шт.

31

KHJ1361

O-RING,0.07" Thk x 0.926" ID

5шт.

32

154548A1

O-RING

1шт.

33

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.
